1 Port Gpon Mini OLT Optical

(0 reviews)
Estimate Shipping Time: 3 Days
Brand
HSGQ
Sold by ISMART

Please Login to view price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
Structure: 1*Fixed GPON Port; 4*GE RJ45; 1*10G SFP+; 1*Console Port.
Cost-effectiveness: Lower in cost than traditional OLT, it is a more cost-effective choice.
Deployment: Small size, light weight, easy to install and deploy.
Expansion: More ONUs can be added as needed to meet network expansion needs.
Performance: Adopts mature technology with high reliability and stability.
Suitable: Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Scenario: FTTH/ SOHO/ Small Enterprise Office

G01 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carrier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and fexible network mode. G01 can be used with network management system so as to provide userswith the comprehensive access and perfect solution.

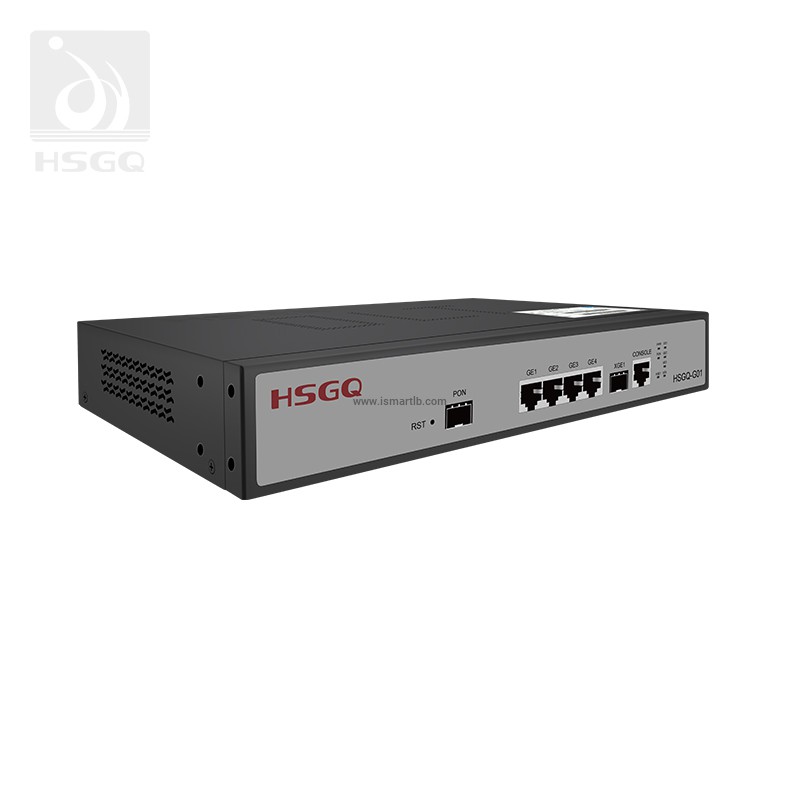

Item HSGQ-G01
Interface 1*GPON
4*GE RJ45
1*10G SFP+
PON ITU.T G.984.x/G.988;
Password authentication modes
Terminal access up to 20km on a single fiber
1: 128 split ratio on single PON port
DBA algorithm, and the particle is for 64Kbit/s
Standard OMCI management function
ONU batch software upgrade
PON port optical parameter detection
Auto registration ONU bound with default profile
Flash 16MB
DDR 512MB

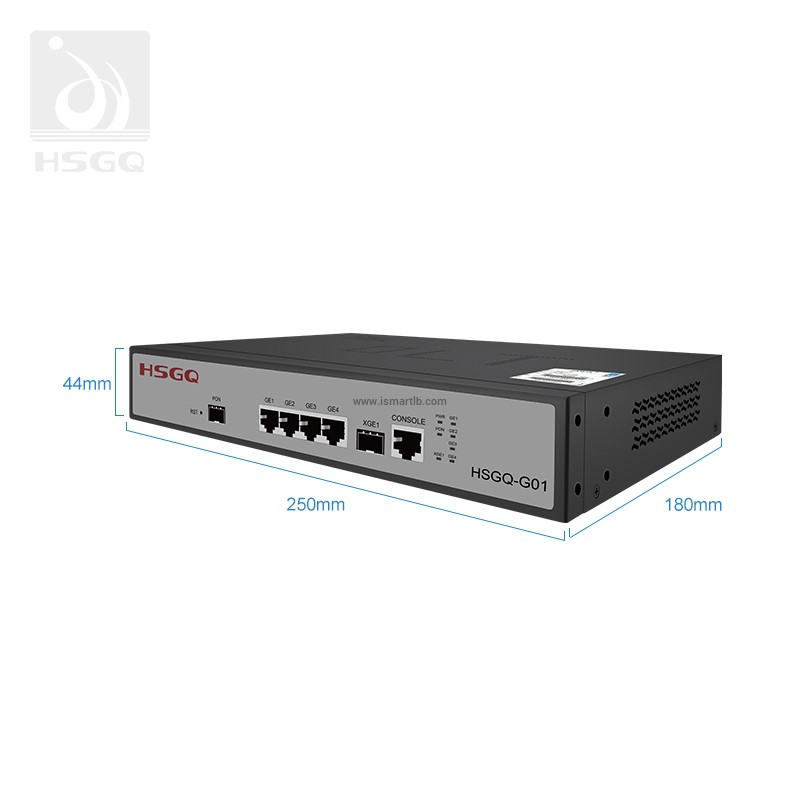

Size 250mm x 180mm x 44mm
Weight <5kg
Management Ports Console port
Environment Operating temperature:-10°C~55°C
Storage temperature:-40°C~70°C
Storage humidity:5%~95% (non-condensing)
Power Supply DC 12V
Power Consumption <10W
Platform Management Features Device list
Project management
Version Release
Lisense management
Permission management
User management
Configuration and Management CLI, WEB, SNMP, NMS and CLOUD
Software and bootrom Upgrade by TFTP and FTP
Chinese/English command prompt
Ping and Debug diagnosis
User/Log/Alarm management
Status PON Status
Uplink Status
Performance Monitor
System Monitor
L2 Function Support VLAN
Support Port mirror
Support Storm control
Support IGMP Snooping/proxy
Support MAC Black Hole
Support Port isolation
Encrytion of PON port transmitting data
  • Optical link diagnosis: Complete warning mechanism.

  • High reliability: Support dual power supply.

  • Dimension: 1U cassette save space, low power consumption.

  • Uplink: Support electrical and optical modules, can be flexibly configured according to different networking.

  • Capacity: Each PON supports up to 128 terminals, the whole device supports up to 128 ONUs under full configuration.
