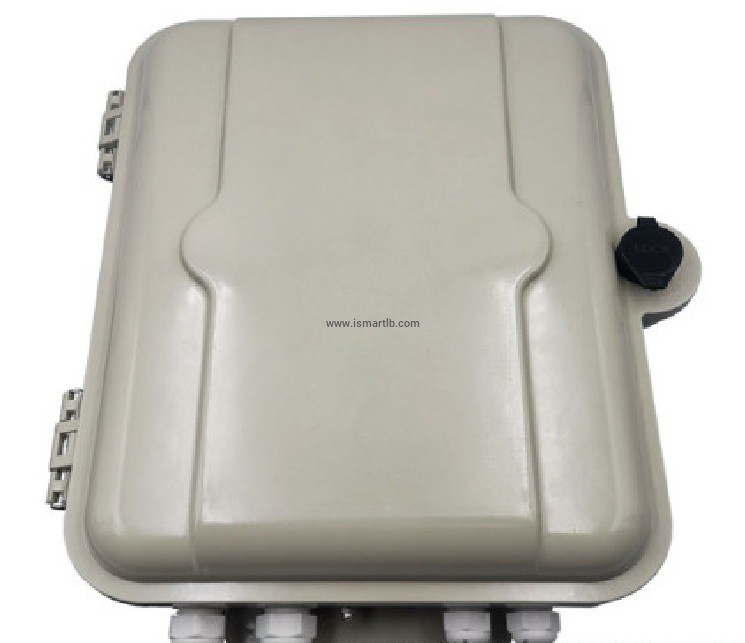

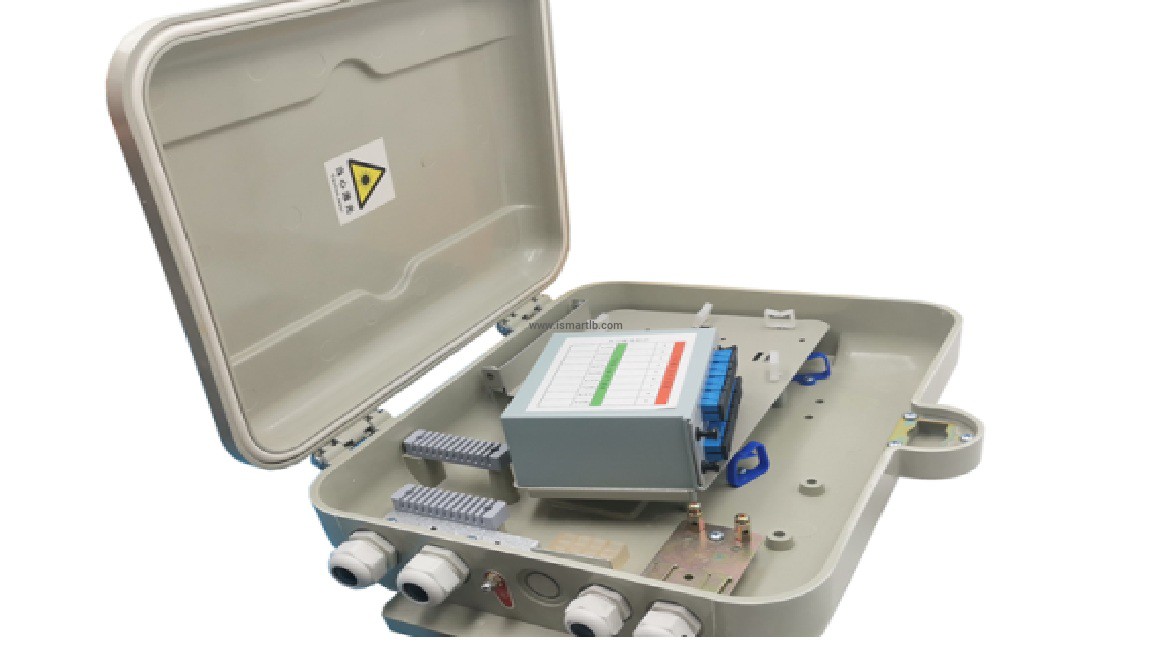

16 Core Fiber Optic Distribution Box SMC

Electrical parameters:
1. Connector attenuation(Insertion, exchange, reiteration)≤0.3dB
2. Return loss:APC≥60dB,UPC≥50dB,PC≥40dB
3. Ground resistance voltage level: 3000V(DC)/1min
4. Atmospheric pressure:70Kpa~106Kpa
5. Insulation resistance:≥2X1000MΩ/500V
Working environment:
1. Ambient temperature: -25 °C ~ +60 °C
2. Relative humidity: ≤ 95% (40 °C
3. Atmospheric pressure: 70 ~ 106Kpa

Application:

1.widely used in FTTH access network.

2.Telecommunication Networks

3.CATV Networks

4.Data communications Network
