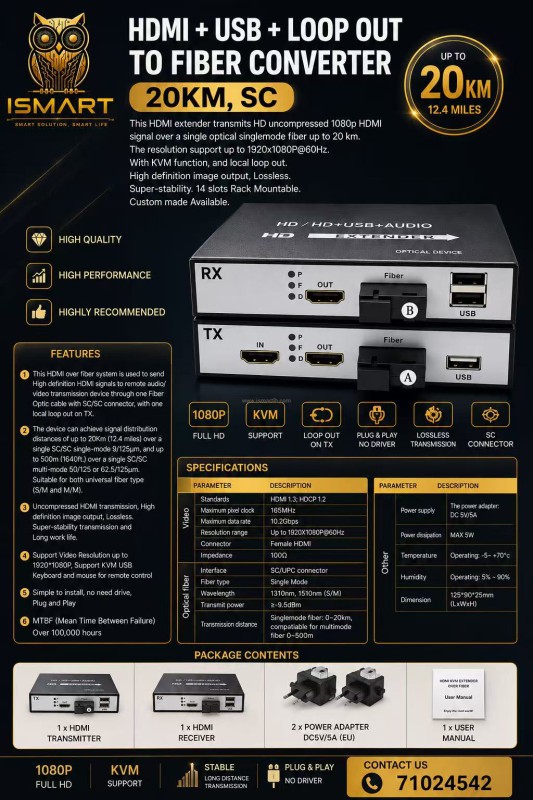

HDMI + USB + Loop out to Fiber Converter, 20KM, SC.
High Quality, High Performance, Highly Recommend
Feature:

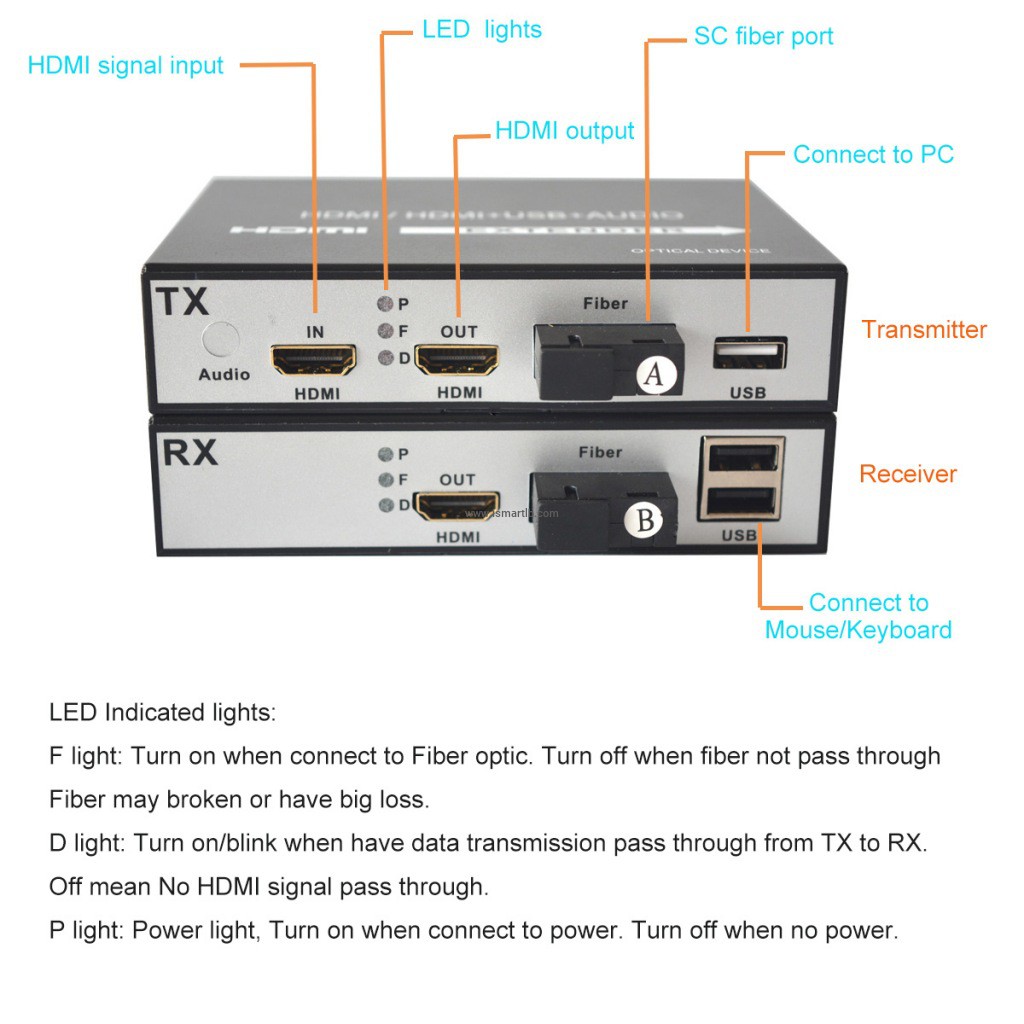

1. This HDMI over fiber system is used to send High definition HDMI
signals to remote audio/video transmission device through one Fiber
Optic cable with SC/SC connector, with one local loop out on TX.
2. The device can achieve signal distribution distances of up to
20Km(12.4miles) over a single SC/SC single-mode 9/125μm, and up to 500m
(1640ft.) over a single SC/SC multi-mode 50/125 or 62.5/125μm. Suitable
for both universal fiber type(S/M and M/M).
3. Uncompressed HDMI transmission, High definition image output, Lossless. Super-stability transmission and Long work life.
4. Support Video Resolution up to 1920*1080P, Support KVM USB Keyboard and mouse for remote control
5. Simple to install, no need drive, Plug and Play
6.MTBF (Mean Time Between Failure) Over 100,000 hours
Specification:
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3; HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 1920X1080P@60Hz |
|
|
Connector |
Female HDMI |
|
|
Impedance |
100Ω |
|
|
Optical fiber |
Interface |
SC/UPC connector |
|
Fiber type |
Single Mode |
|
|
Wavelength |
1310nm, 1510nm (S/M) |
|
|
Transmit power |
≥-9.5dBm |
|
|
|
Transmission distance |
Singlemode fiber: 0~20km, compatiable for multimode fiber 0~500m |
|
Other |

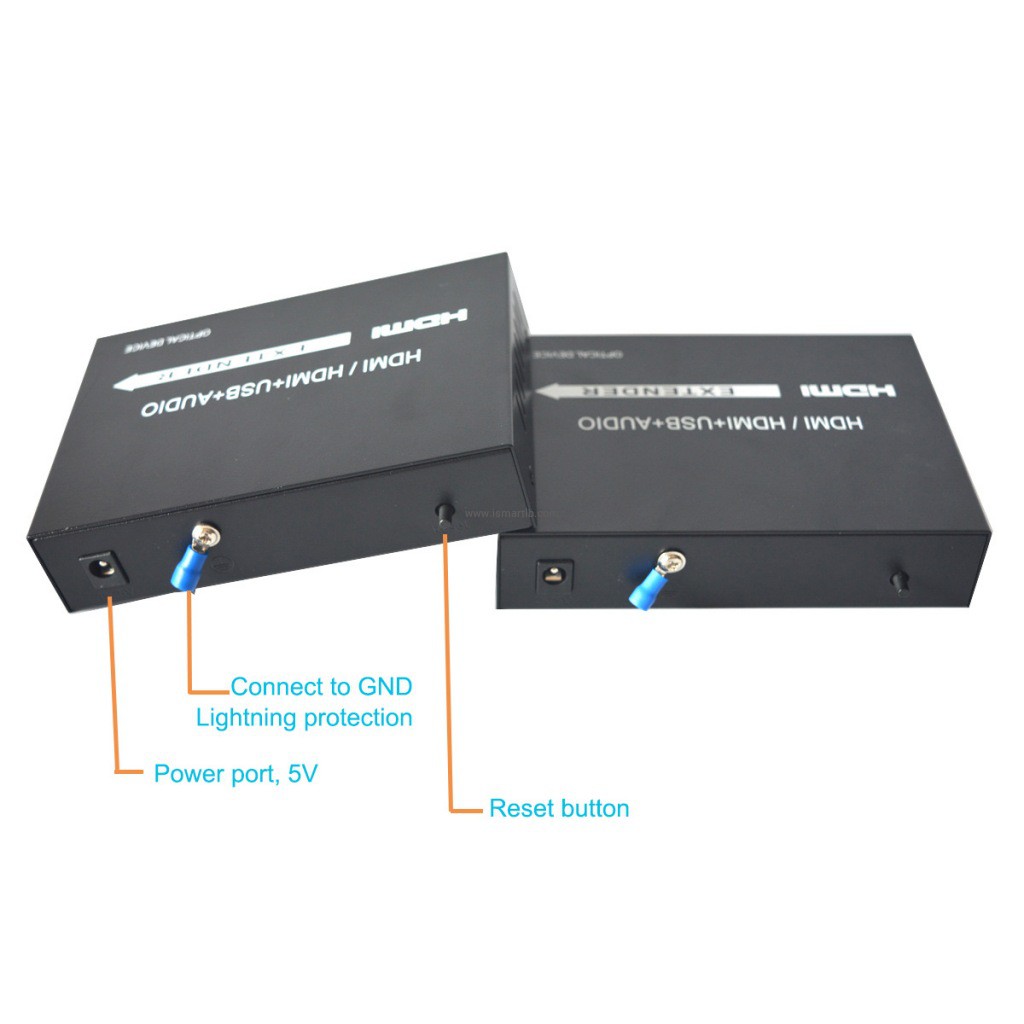

Power supply |
The power adapter: DC 5V/5A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5~ +70°c |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|

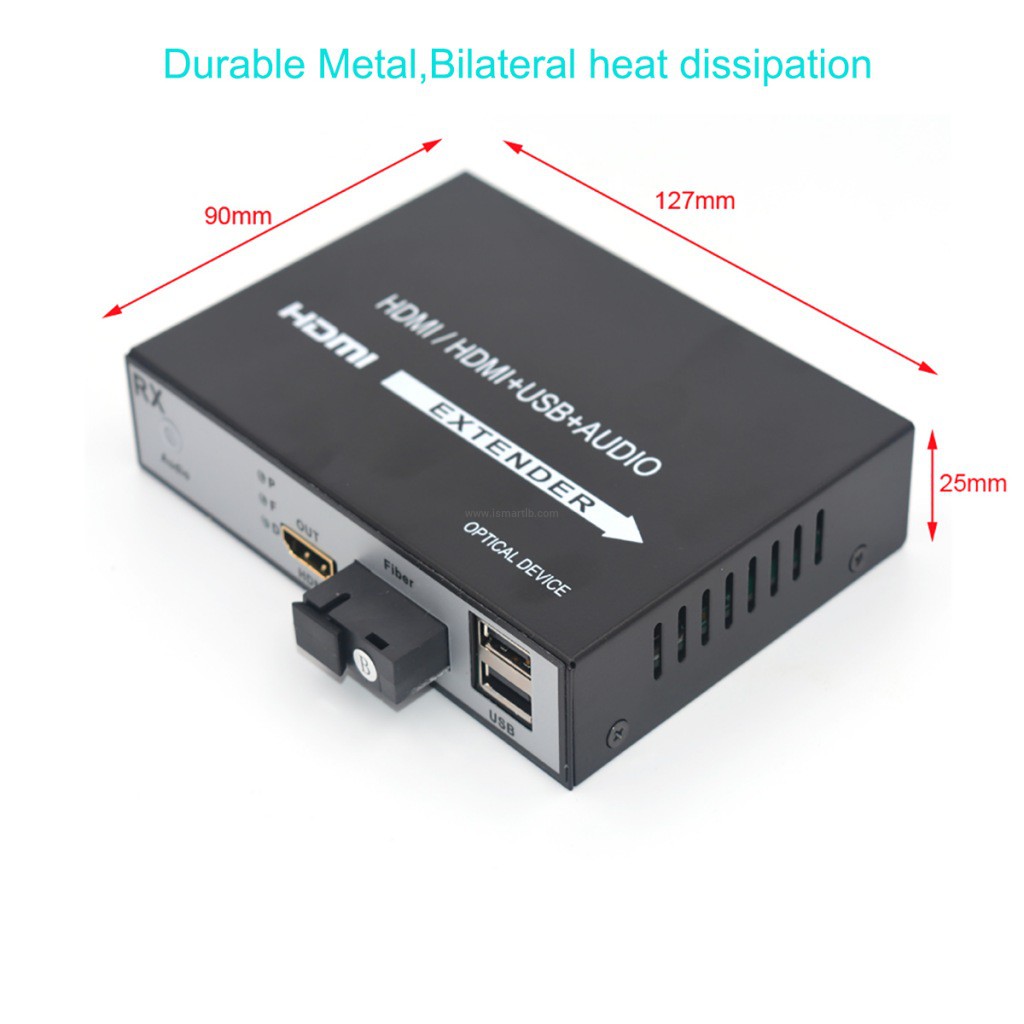

Dimension |
125*90*25mm (LxWxH) |
|
Package contents:
- 1x HDMI transmitter
- 1x HDMI receiver
- 2 x power DC5V/5A (EU)
- 1 x User manual
