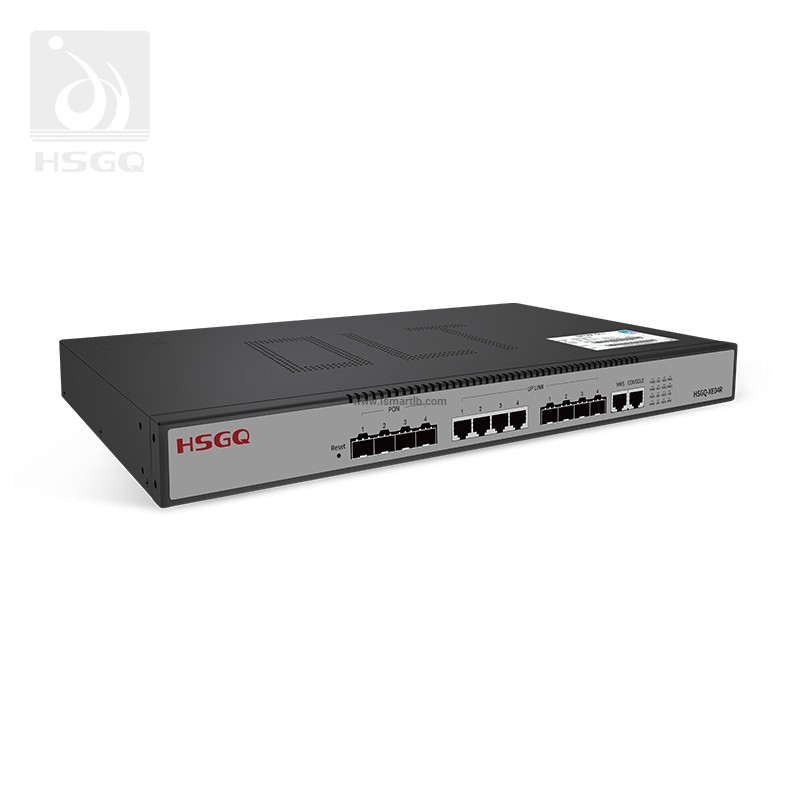

| Model | HSGQ-XE04R |
| DDR | 512M |
| FLASH | 32M |

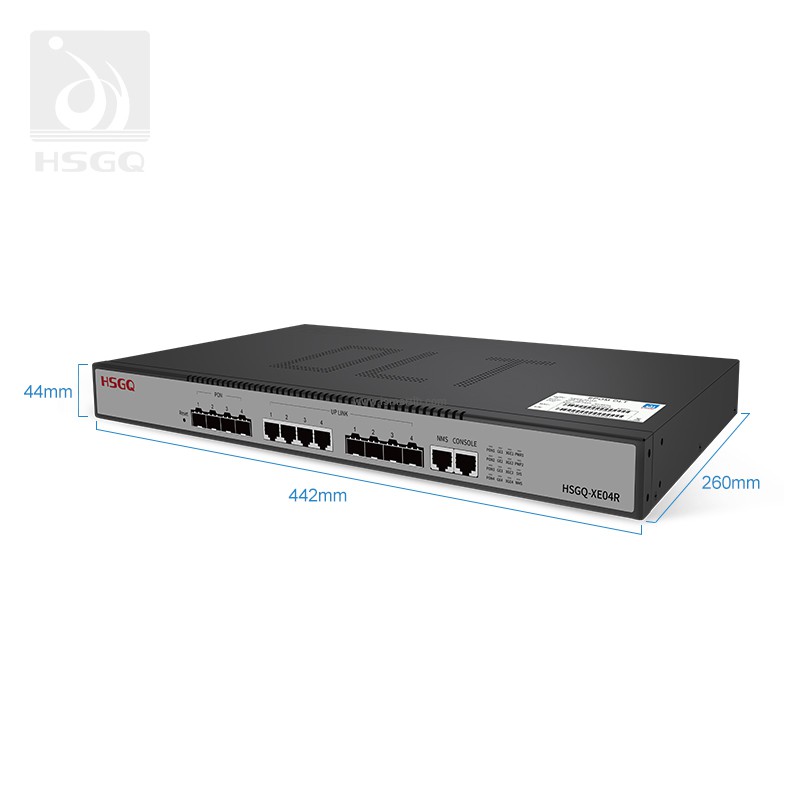

| Size (L*W*H) | Product size: 442mm×260mm×44mm |
| Package size: 520mm×372mm×87mm | |
| Weight | <5kg |
| Uplink | QTY: 8 |
| Copper: 4*10/100/1000M auto-negotiable, RJ45 | |
| SFP: 4*1G/10G SFP | |
| PON | QTY: 4 |
| PhysicalInterface: 4*PON SFP slots | |
| Optical module Type: 1000BASE-PX20+/PX20++/PX20+++ | |
| Max splitting ratio 1:64 | |
| Management Ports | CONSOLE port/NMS port |
| Power Input | AC: 100V～240V 47/63Hz |
| PON function | Support auto register |
| Blacklist and whitelist onu | |
| DBA configure | |
| P2P | |
| ONU authorization | |
| Temperature | -10℃~60℃ |
| Humidity | 5%~95% |
| Support standard | IEEE 802.3ah EPON |
| IEEE802.3(10Base-T) | |
| IEEE802.3u(100Base-TX) | |
| IEEE802.3z (1000BASE-X) | |
| IEEE802.3ab (1000Base-T) | |
| IEEE802.1Q(VLAN) | |
| IEEEE802.1d(STP) | |
| IEEEE802.1W(RSTP) | |
| IEEE802.1p(COS) | |
| IEEE802.3x (flow-control) | |
| Layer 2/3 function | VLAN, QinQ, translation |
| Support at most 4094 VLAN; performance statistic | |
| 16K MAC address; mac address management | |
| Port mirror | |
| Support RSTP | |
| Support control | |
| Support IGMP Snooping/proxy | |
| Support 4K router hosts | |
| Support 64 router subnets | |
| Port isolation | |
| ACL access control based on data stream | |
| Qos based on port, VID, ToS and MAC address; | |
| Encrytion of PON port transmitting data | |
| Configuration and Management | CLI, WEB, SNMP/NMS |
| Software and bootrom Upgrade by TFTP and FTP | |
| Chinese/English command prompt | |
| Ping | |
| Debug diagnosis | |
| User management | |
| Log management | |
Alarm management |
Support full wire-speed forwarding.
16K MAC address table.
Complete network management functions.
Support flexible DBA, up and down traffic speedcontrol.
Support lP ToS, IEEE802.1Q.
Support port aggregation.
Port-based traffic control, traffic shaping.
Support ONU automatic identification, auto-discovery, and auto-registration.
Support the automatic loop-back test function.
VLAN powerful features, including VLAN stacking, trunk, translation.
Flexible and controllable multicast support, support lGMP snooping.
Support ACL/Qos.
EPON: OLT follows the technical standard of IEEE802.3ah and China telecom (YD/T 1475-2006).
Opticallink diagnosis: complete warning mechanism.
High reliability: supports dual power supply(Default single power supply).
Dimension: 1U cassette save space, low power consumption.
Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
Capacity: Each PON supports up to 64 terminals,the whole device supports up to 256 ONUs under full configuration.
