Structure: 8*Fixed EPON Port; 4*GE RJ45; 4*1G/10G SFP+; 1*Consola Port.
Scalable Solution: The modular design with pluggable box modules allows for easy network expansion.
Cost Effectiveness: 1U box EPON OLT generally provides a more economical solution, especially for small-scale deployments.
Simplified Deployment: The box module simplifies the installation and maintenance process, reducing deployment time and cost.
Energy Efficiency: 1U box EPON OLT is designed to consume minimal power, helping to reduce operating expenses and reduce environmental impact.
Space Optimization: The compact 1U size fits into tight spaces and is more suitable for installation in MDUs, enterprise sites, or central offices with limited rack space.
Cost Effectiveness: 1U box EPON OLT generally provides a more economical solution, especially for small-scale deployments.
Simplified Deployment: The box module simplifies the installation and maintenance process, reducing deployment time and cost.
Energy Efficiency: 1U box EPON OLT is designed to consume minimal power, helping to reduce operating expenses and reduce environmental impact.
Space Optimization: The compact 1U size fits into tight spaces and is more suitable for installation in MDUs, enterprise sites, or central offices with limited rack space.

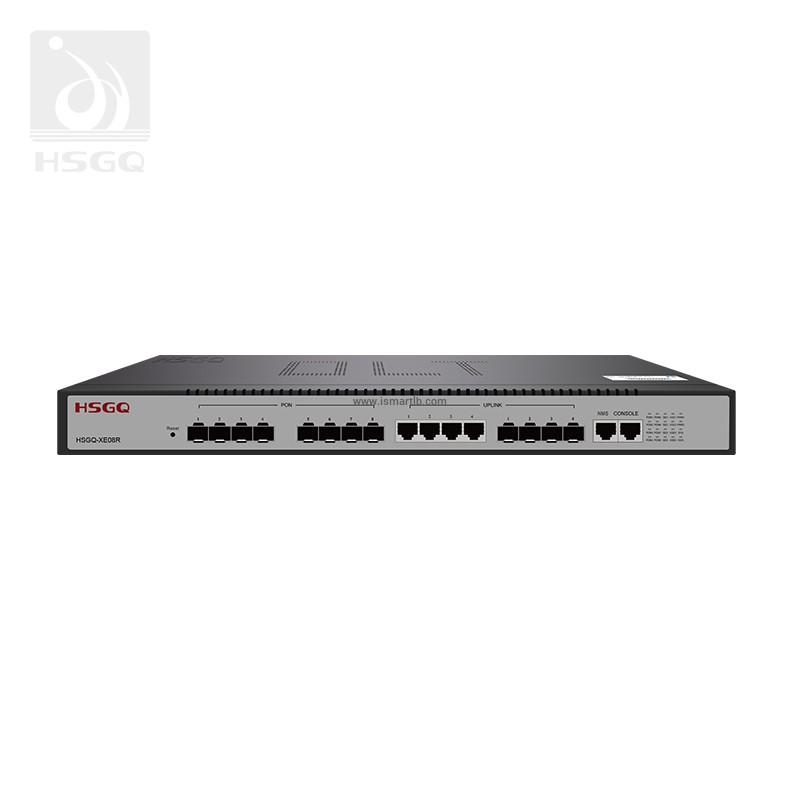

HSGQ-XE08R
is 1U cassette EPON OLT series. The system has good stability and high
reliability. It supports CLI, WEB, SNMP and other management methods.
The product provides 8 downlink EPON interfaces, 4*1000base - t uplink
Ethernet interfaces and 4*10G SFP+ uplink interfaces. Through the cloud
management function, users can quickly deploy, configure, remotely
manage and operate the equipment in the whole network, which greatly
reduces the labor cost and time cost in the process of network
construction. It is suitable for sparsely populated, remote and
cost-sensitive areas, smart industrial parks, commercial buildings,
FTTx, etc. Each EPON port supports up to 1:64 split ratio, up to 512
EPON users, and different types of ONUs under different networks. 1U
height for easy installation and maintenance. It is an excellent choice
for operators to rapidly deploy FTTH networks.
| Item | HSGQ-XE08R |
| Interface | 8*EPON |
| 4*10/100/1000M RJ45 | |
| 4*10G SFP+ | |
| PON | Physical Interface: PON SFP Slots |
| Type: 1000 BASE - PX20+/PX20++/PX20+++ | |
| Max splitting ratio: 1: 64 | |
| Flash | 32 MB |
| DDR | 256 MB |
| Size | 442mm x 260mm x 44mm |
| Weight | ＜5kg |
| Standard | IEEE802.3ah EPON |
| IEEE802.3 (10Base-T) | |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3z (1000BASE-X) | |
| IEEE802.3ab (1000Base-T) | |
| IEEE802.1Q (VLAN) | |
| Management Ports | Console port/NMS port |
| Environment | Operating temperature: -10°C~60°C |
| Storage temperature: -40°C~80°C | |
| Storage humidity: 5%~95% (non-condensing) | |
| Power Supply | AC: 100V-240V 50/60Hz |
| Power Consumption | ＜40W |
| PON Function | Support auto register |
| Blacklist and whitelist onu | |
| DBA configure | |
| P2P | |
| ONU authorization | |
| Platform Management Features | Device list |
| Project management | |
| Version Release | |
| Lisense management | |
| Permission management | |
| User management | |
| Configuration and Management | CLI, WEB, SNMP/NMS, CLOUD |
| Software and firmware upgrade | |
| Chinese/English command prompt | |
| Support Ping and debug diagnostic function | |
| User, log and alarm management | |
| L3 Function | Support Static Routing |
| Support DHCP Server, DHCP Snooping and DHCP Relay | |
| Support OSFP | |
| L2 Function | Supports VLAN, VLAN Translation and QinQ |
| Supports up to 4094 VLANs | |
| Support Port Mirroring | |
| Supports RSTP and MSTP (recovery time<1s) | |
| Supports link aggregation (recovery time<10ms) | |
| Storm control support | |
Support IGMP snooping/proxy | |
| Support port isolation | |
| Support ACL access control based on data flow | |
| Supports QoS based on port, VID, TOS and MAC address | |
| Support PON port transmission data encryption |
