High-Bandwidth Access:
GPON technology provides high bandwidth of 2.5Gbps downstream and
1.25Gbps upstream, meeting users' demand for high-speed networks.
Multi-Service Support:
Support multiple services such as data, voice and video (triple play),
suitable for applications such as home broadband, enterprise dedicated
lines and IPTV.
Flexible Uplink Ports: Provides a
variety of uplink port options, such as GE (Gigabit Ethernet) and 10GE
(10 Gigabit Ethernet) ports, which are convenient for connection to the
upper network.
Network Management: Support multiple
management methods, such as CLI (Command Line Interface), WEB, SNMP and
Telnet, which is convenient for network administrators to configure and
maintain.
Product Features
| PON Features | ITU-TG.984.x/G.988 SN LOID/LOID Password/LOID+LOID, Password authentication modes Terminal access up to 20km on a single fiber Support up to 128 ONUs in single fiber 1:128 split ratio on single PON port DBA algorithm, and the particle is for 64Kbit/s Standard OMCI management function ONU batch software upgrade PON port optical parameter detection Auto registeration ONU bound with default profile |
| L2 Features | |
| MAC | MAC Black Hole Port MAC Limit 32K MAC |
| VLAN | 4K VLAN entries Port-based VLAN classification Uplink VLAN Swap and VLAN Remark |
| Spanning Tree | STP/RSTP/MSTP Loop detection |
| Port | Support link aggregation Port mirroring |
| Service Port | Auto configuration service-port by profile VLAN transparent/tag/stacking/aggregation |
| L3 Features | Support Static Routing Support DHCP Server, DHCP Snooping and DHCP Relay Support OSPF |
| Security Features | |
| User Security | Anti-ARP-spoofing Anti-ARP-flooding Port lsolation MAC address binding to the port and MAC address filtering |
| Device Security | Support the controllayer to prevent a variety of DOS attacks and virus attacks against the CPU Hierarchical management and password protectionof users SSHv2 Secure Shell Login Security IP via Telnet |
| Network Security | User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port DHCP Option82 and PPPoE+ upload user's physical location |
| Maintenance | |
| Network Maintenance | Port real-time,utilization and transmit/receive statistic Powerful WEB GUI Data Logging and RFC 3164 BSD syslog protocol Ping |
| Device Management | Console port,Telnet, SSH management Out-band management SNMP v1/v2 RMON(Remote Monitoring)1,2,3,9 groups MIB SMTP Fan management |
| Reliability | |
| Loop Protection | Loopback-detection |
| Link Protection | RSTP/MSTP(recover-time <1s) Link aggregation(recover-time <10ms) |
| Device Protection | 1+1 power hot backup |
| Service Features | |
| Qos | ·Rate-limit
to packet sending/receving speed of port or self-defined flow and
provide general flow monitor and two-speed tri-color monitor of
self-defined flow ·CAR(Committed Access Rate),Traffic Shaping and flow statistics ·Packet mirror and redirection of interface and self-defined flow ·Supports priority marking of ports or custom flows and provides 802.1p,DSCP-priority Remark capability ·Super queue scheduler based on port or self-defined flow. Each port/flow supports 8 priorit queues and scheduler of SP,WRP and SP+WRR ·Congestion avoidance mechanism,including TailDropand WRED |
| ACL | ·Standard and extended ACL ·Time Range ACL;Flow classification and flow definition based on source/destination MAC address VLAN，802.1p,Tos,DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port numberprotocol type, etc. ·Packet filtration of L2~L7 deep to 80 bytes of IP packet head |
| Multicast | IGMP v1/v2 Snooping IGMP Fast leave GMP Proxy Compatibie with IGMP v3 |
Product Specification
| Switching Capacity | 82Gbps |
| Forwarding Capacity | 68.45Mpps |
| Service Port | 8×PON port,4×GE RJ45, 2×GE SFP port,2×10GE SFP+ port |
| Redundancy Design | Dual power supply Support double AC input, double DC input and AC+DC input |
| Power Supply | AC:input 100~240V 50/60Hz |
| Power Consumption | 55W |

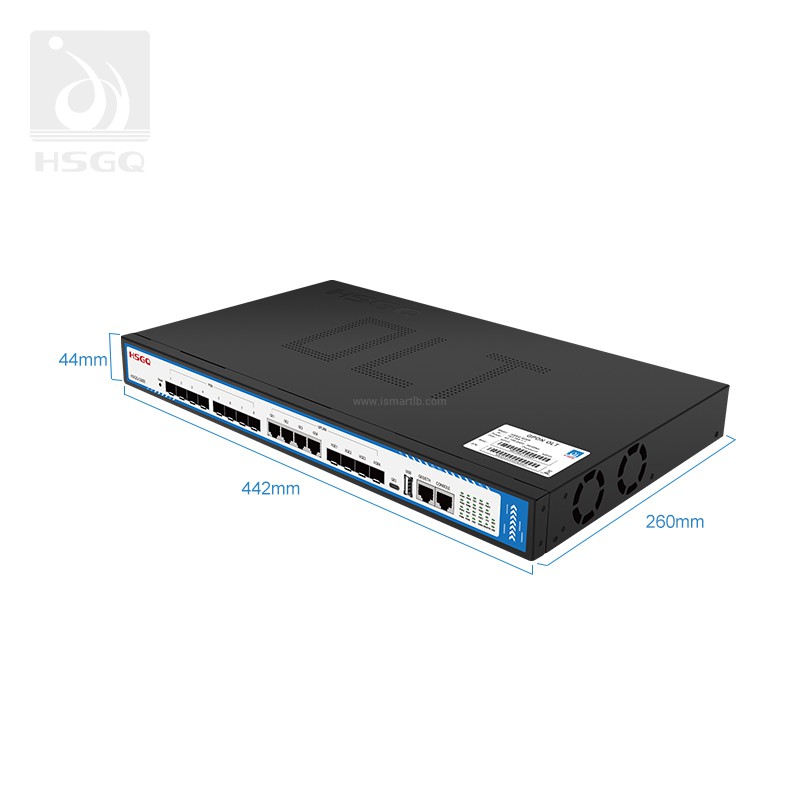

| Dimensions | 440mm(W)×380mm(L)×44mm(H) |
| Weight(Full-Loaded) | ≤5kg |
| Environmental Requirements | Working temperature: -10℃~55℃ Storage temperature:-40℃~70℃ Relative humidity:10%~90%, non-condensing |
