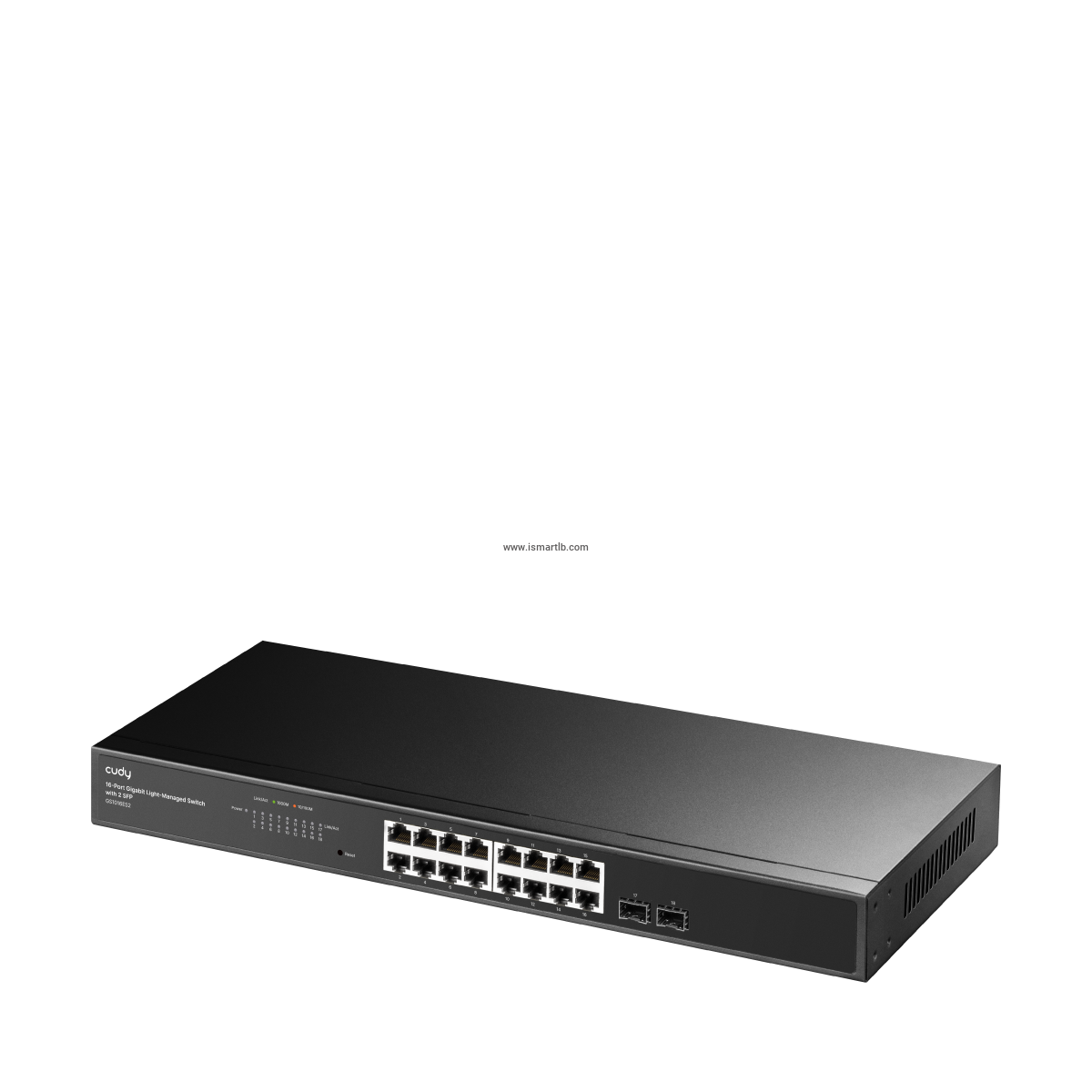

Cudy 16-Port Gigabit Ethernet Switch, GS1016
● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 16 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX ports provide smart switching abilities
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 8K MAC address auto-learning and auto-aging
Specifications:
| Product Name | 16-Port Gigabit Ethernet Switch | |
| Product Model | GS1016 | |
| Chipset | RTL8382L+RTL8218B-VC-CG+RTL8231 | |
| Standards | IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az | |
| Number of Ports | 16 x 10/100/1000Mbps Auto-Negotiation ports | |
| Network Media (Cable) | 10Base-T: UTP category 3,4,5 cable (maximum 100m) | |
| 100Base-Tx: UTP category 5,5e cable (maximum 100m) | ||
| 1000Base-T:UTP category 5e,6 cable (maximum 100m) | ||
| Transfer Method | Store-and-Forward | |
| MAC Address Table | 8K | |
| Switching Capacity | 32Gbps | |
| Packet Forwarding Rate | 23.81Mbps | |
| Packet Buffer | 4.1 Mbit | |
| Jumbo Frame | 9216 bytes | |
| LED indicators | Per-Port | 10M/100M Link/ACT：Orange |
| 1000M Link/ACT：Green | ||
| Per Device | Power ：Green | |
| Power Supply | 100-240VAC 50/60Hz | |
| Power Consumption | Maximum: 10.1W(220V/50Hz) | |
| Dimensions ( W x D x H ) | 440*140*44mm | |
| Environment | Operating Temperature: 0℃ ~ 40℃ | |
| Storage Temperature: -40℃ ~70℃ | ||
| Operating Humidity: 10%~90% non-condensing | ||
| Storage humidity: 5%~90% non-condensing |
Features:
Provide a variety of installation methods for easy deployment in any environment ● Support 19-inch Rack-mount Steel Case ● Support Desktop installation |
High Performance Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably. |
Power Saving Save power up to 40% - The GS1016 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%. |
