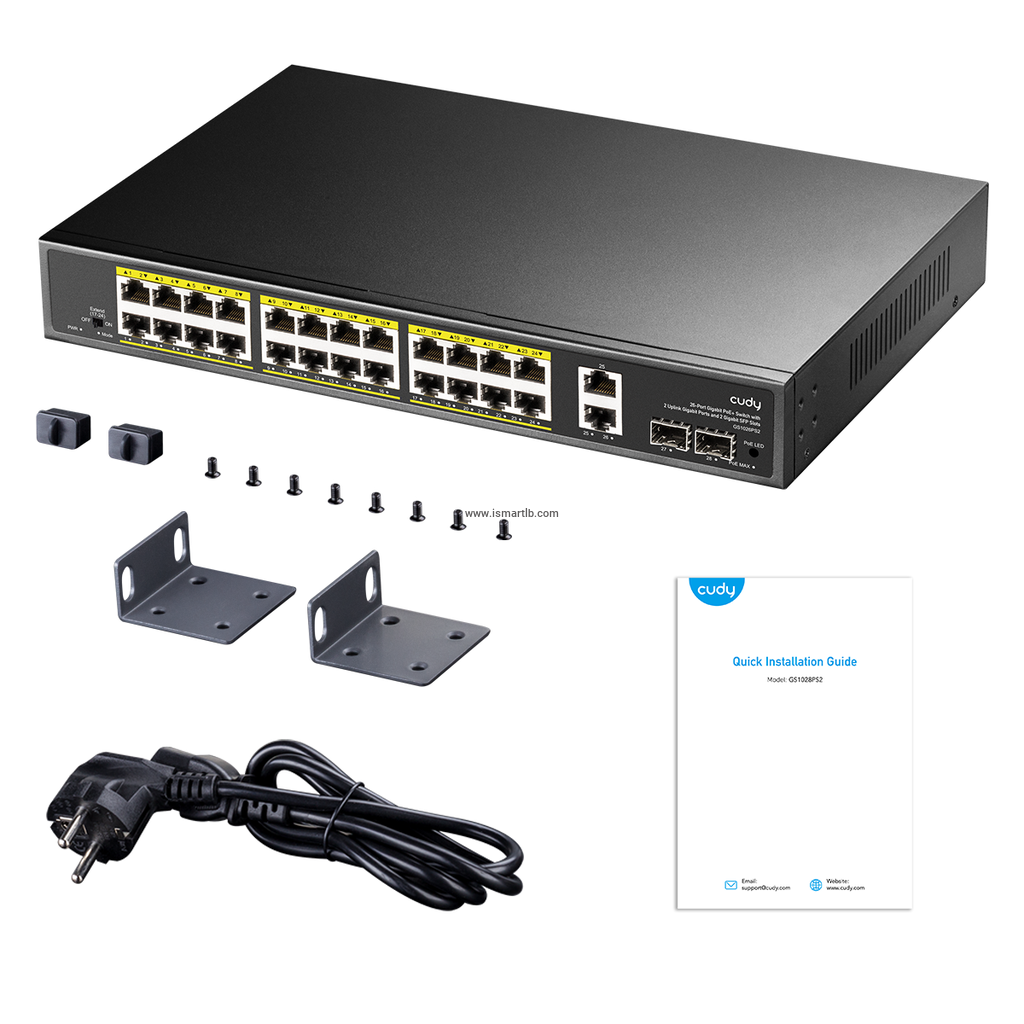

Cudy 24-Port Gigabit PoE+ Switch with 2 Uplink Gigabit Ports and 2 Gigabit SFP Ports, Model: GS1026PS2
● Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
● 24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
● Port 17-24 Supports CCTV Mode for max 250 meters transmission
● 300-watt total power supply
● Watchdog detects unresponsive PoE clients under VLAN mode
● PoE Port Priority streamlines device power management
Specifications:
| Model | GS1026PS2 | ||
| Connector Type | 24× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots | ||
| Network Protocol | IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) | ||
PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) | |||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media | 10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | ||
| Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km | ||
| Performance Specification | Bandwidth: 56Gbps | ||
| MAC: 8K | |||
| Packet Buffer Memory: 3 Mbit | |||
| Packet Forwarding Rate: 41.644 Mpps | |||
| Power Supply | Power input: AC100-240V 50/60Hz, Power Budget: 300 W | ||
| LED Indicator | PWR | Power supply indicator (Red) | Lighting: Powered Un-Light: No Power |
| 1-24 | PoE/RJ-45 Status indicator (Yellow) | On: POE power supply is normal Off: POE not powered | |
| 1-28 | PoE/RJ-45 StatUs indicator (Green) | On: Link normal Off: Link blocked Flashing: Data transmitting | |
| Note | Press the PoE Status Button to switch between PoE and RJ-45 displaying modes | ||
| Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
