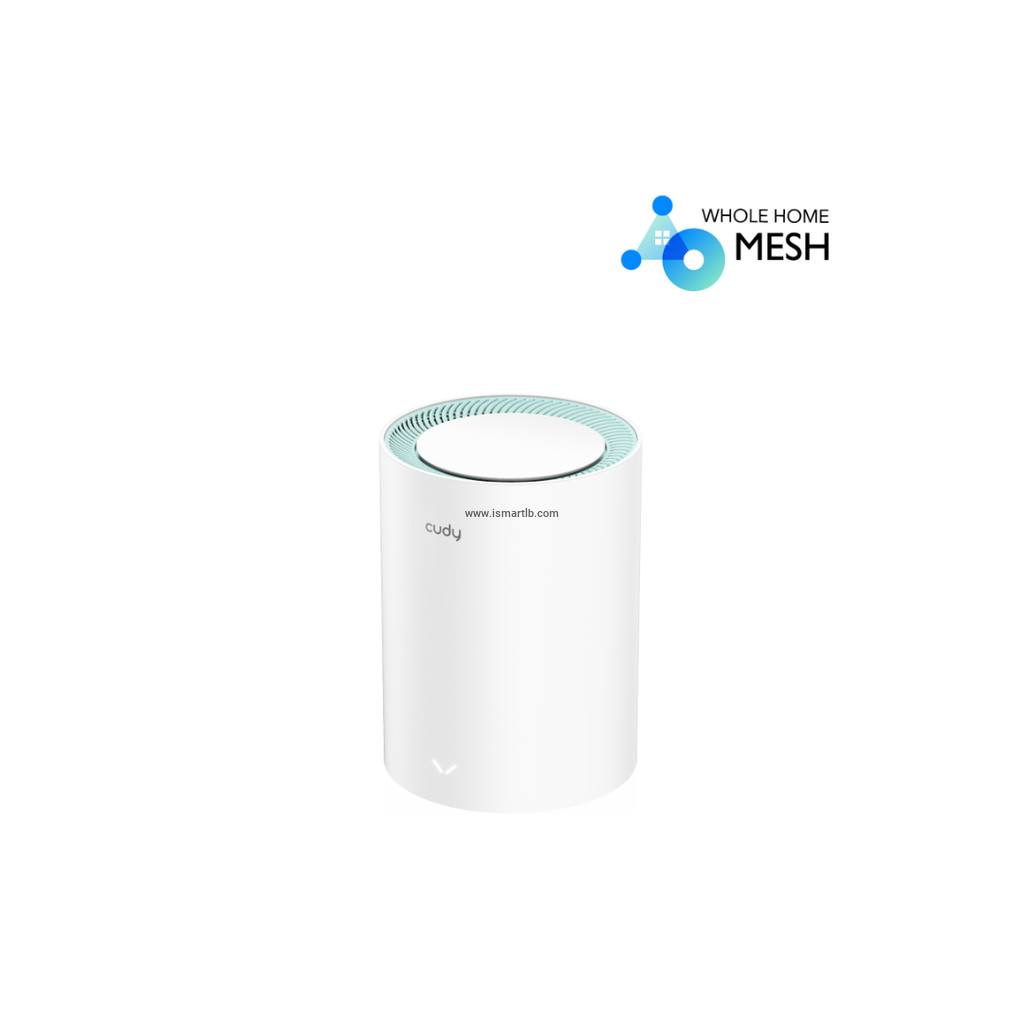

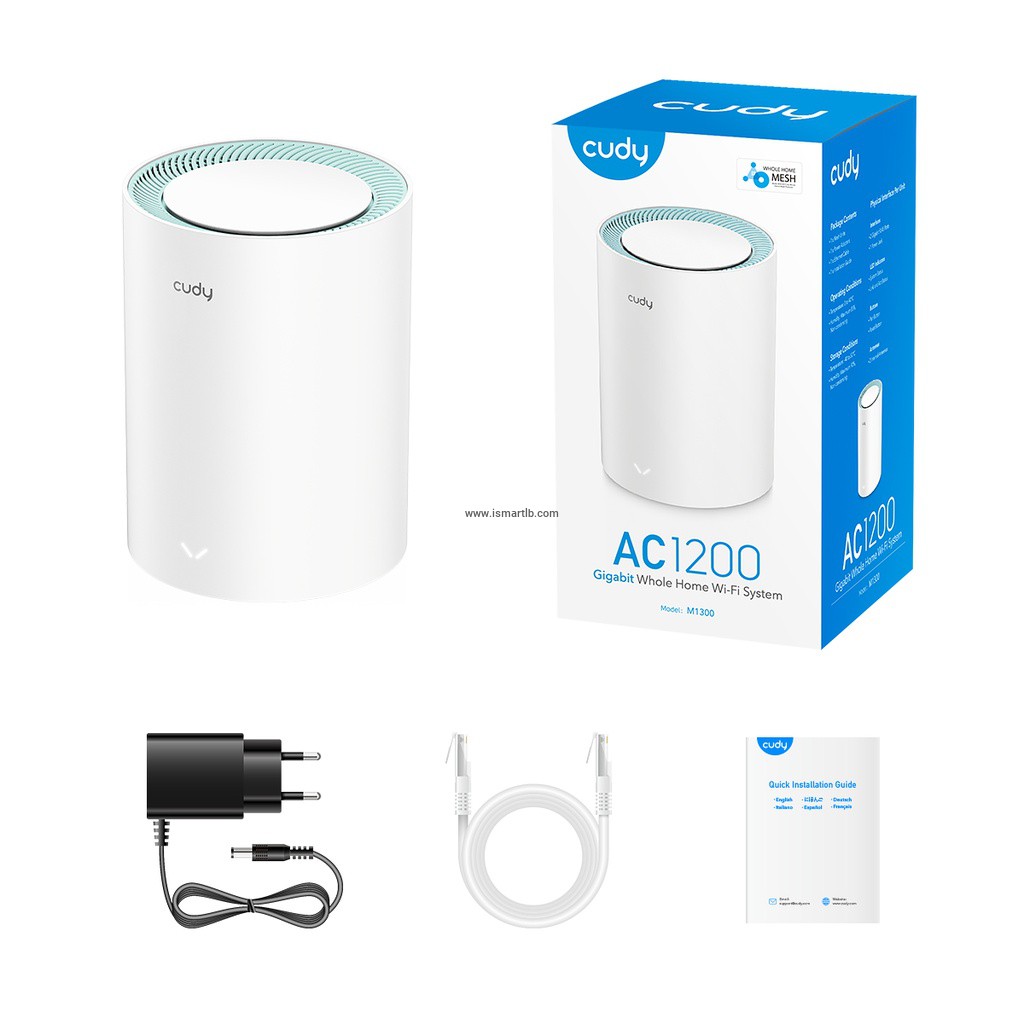

Cudy AC1200 Dual Band Whole Home Wi-Fi Mesh System, Model: M1300 1-pack
● AC1200 Mesh Wi-Fi Solution
● 867Mbps on 5GHz and 300Mbps on 2.4GHz
● Seamless Roaming, Whole Home Coverage
● 2 Gigabit Ethernet Ports
● Compatible with 15 more DDNS providers
● PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier VPN
Specifications:
Hardware Specs
| Model Version | M1300 1.0 | |
|---|---|---|
| CPU | CPU Details | 880 MHz Dual-Core, MIPS1004Kc |
| Memory/Stroage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Internal | |
| 5 GHz Anntenna Gain Max | 6.04dBi | |
| 2.4 GHz Antenna Gain Max | 4.22dBi | |
| FEM or PA/LNA |
| |
| Range Performance | Max: 120 m (394 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') | |
| Wi-Fi Transmission Power |
| |
| Interfaces | Gigabit RJ45 Ports | 2 |
| Ethernet Notes | Port 1 as default WAN port, both as LAN ports on Mesh satellite units | |
| LED |
| |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Reliability | Environment |
|
| Mechanical | Installation |
|
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches | |
| Product Weight | , | |
| Package Content |
| |
| Ordering Informaiton | Retail Package Weight | , |
| Retail Package Dimension | 1-Pack: 145×130×265 mm 5.71×5.12×10.43 inches,2-Pack: 330×130×265 mm 12.99×5.12×10.43 inches,3-Pack: 415×140×248 mm 16.34×5.51×9.76 inches | |
| Units per Carton |
| |
| Carton Dimension | 1-Pack: 57×56×26 cm,2-Pack: 55×54.5×35.3 cm,3-Pack: 53.6×40×28.7 cm |
Software Specs
| Model Version | M1300 1.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 50 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2) | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | true | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | true | |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| VPN Performance |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Captive Portal | true | |
| Wake on LAN | true | |
| Online Detection | true | |
| Max Concurrent VPN Tunnels |
| |
| General | Max Concurrent Sessions | 25000 |
| Management | All Devices Management |
|
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | true |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel | Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Charts | Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed |
