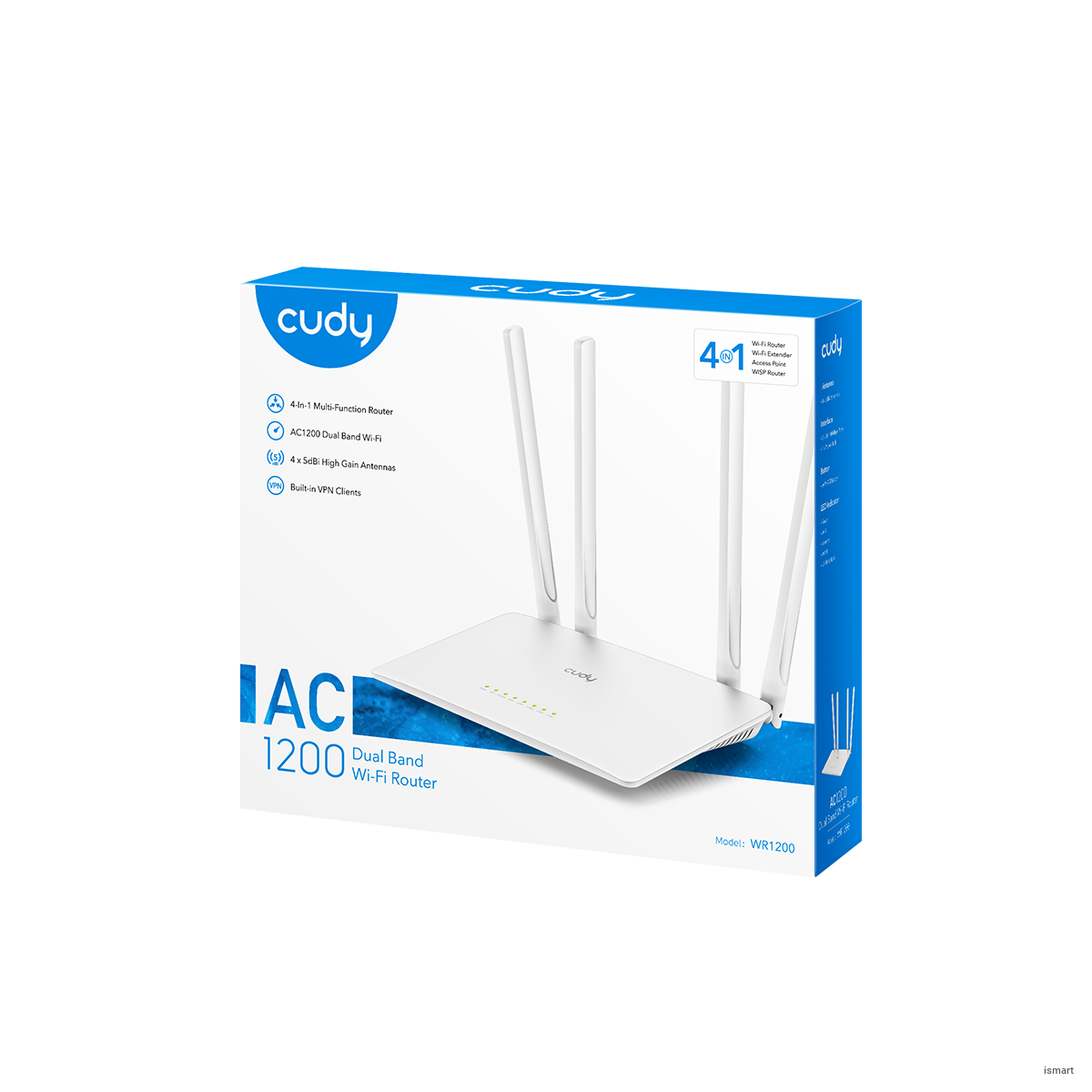

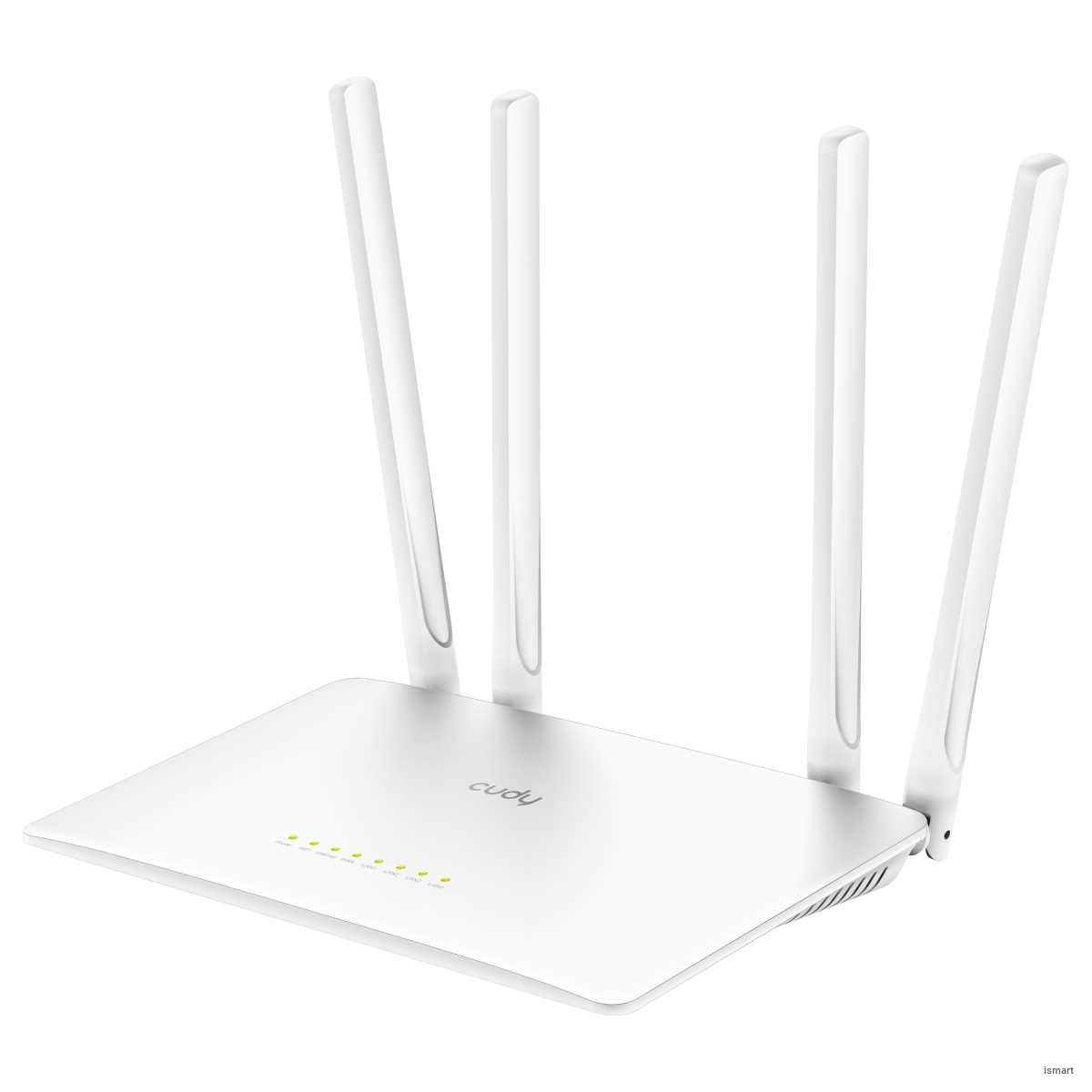

Cudy AC1200 Wi-Fi Router, Model: WR1200
(0
reviews)
Estimate Shipping Time:
3 Days
Inhouse product
Please
Login
to view price
Share
Top Selling Products
-
Login to view price -
Login to view price
-
Login to view price
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Cudy AC1200 Wi-Fi Router WR1200
● Speedy AC1200 Wi-Fi
● 5× 10/100 Mbps Ethernet Ports
● 4× 5 dBi High-Gain Antennas
● Beamforming, MU-MIMO
● SPI Firewall
● Guest Network
● WireGuard/OpenVPN/PPTP/L2TP VPN Client
● Multi-Mode: Router/AP/RE/WISP
Specifications:
Hardware Specs
| Model Version | WR1200 2.0 | |
|---|---|---|
| CPU | CPU Details | 580 MHz Single-Core, MIPS24KEC |
| Memory/Stroage | Flash/ROM | 8 MB (64 Mbit ) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| Range Performance | Max: 120 m (394 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 3.8 cm (1.5'') One concrete wall with thickness < 20 cm (7'') | |
| Wi-Fi Transmission Power |
| |

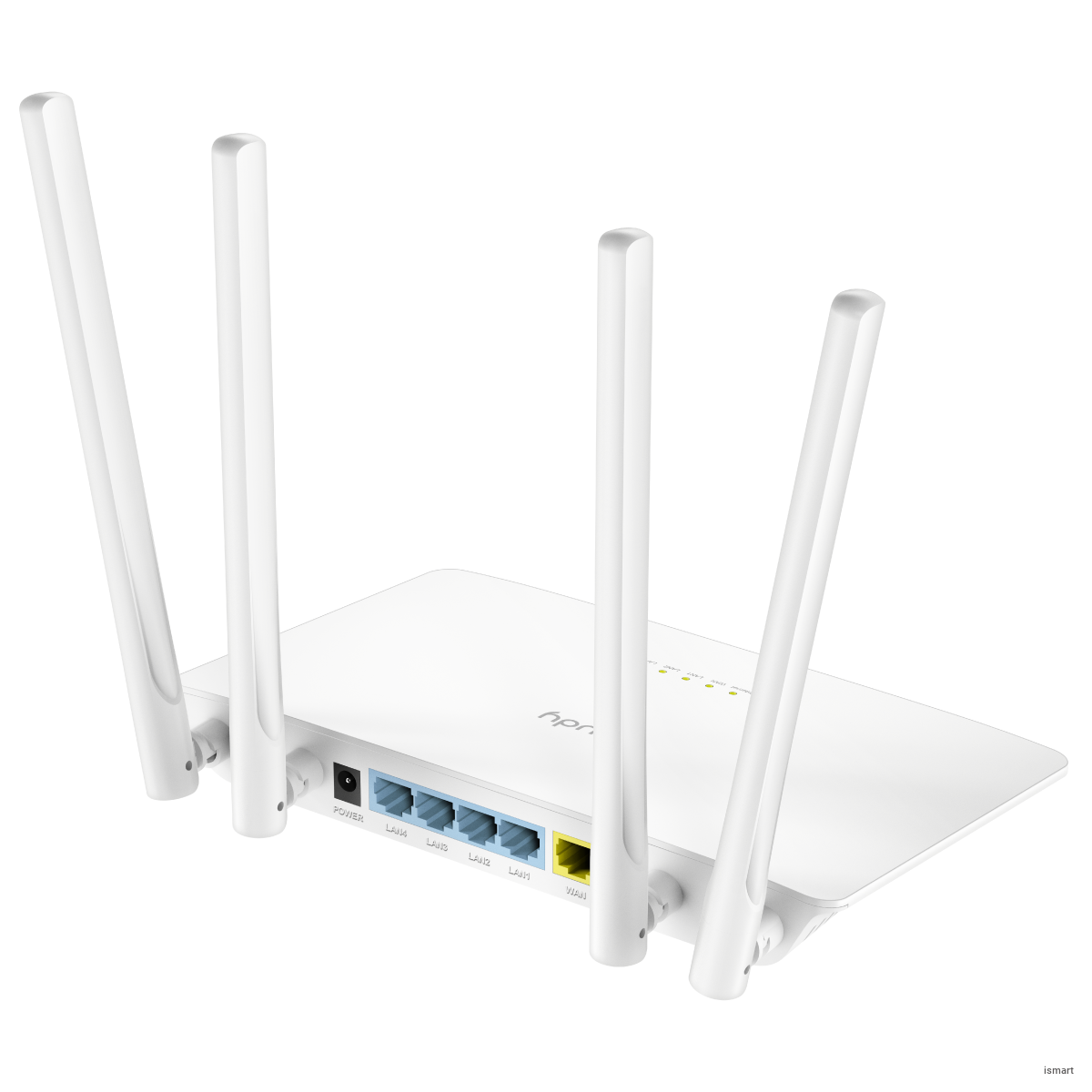

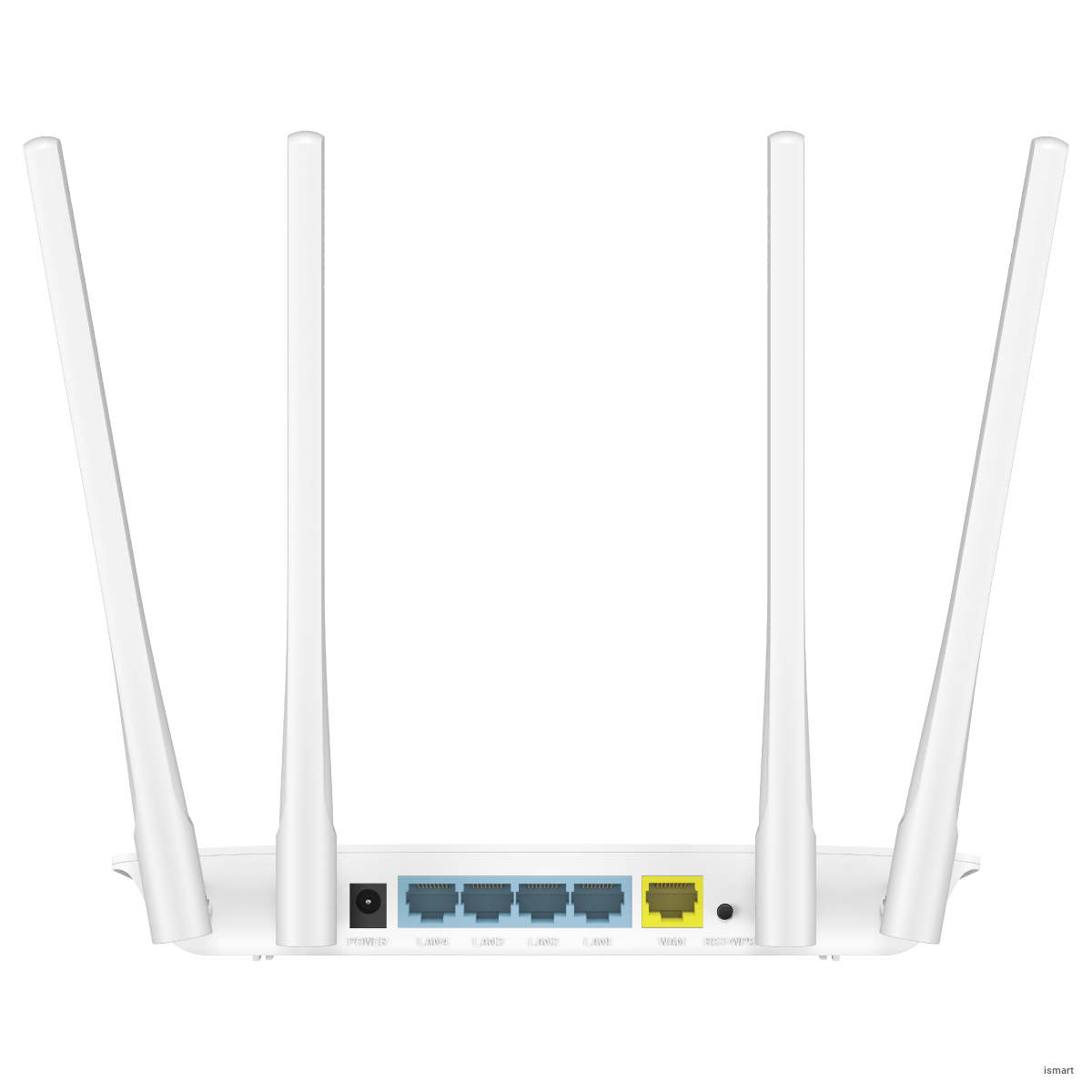

| Interfaces | 10/100 Mbps RJ45 Ports | 5 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED |
| |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Reliability | Environment |
|
| Mechanical | Installation |
|
| Dimension | 220×135×30 mm 8.66×5.31×1.18 inches | |

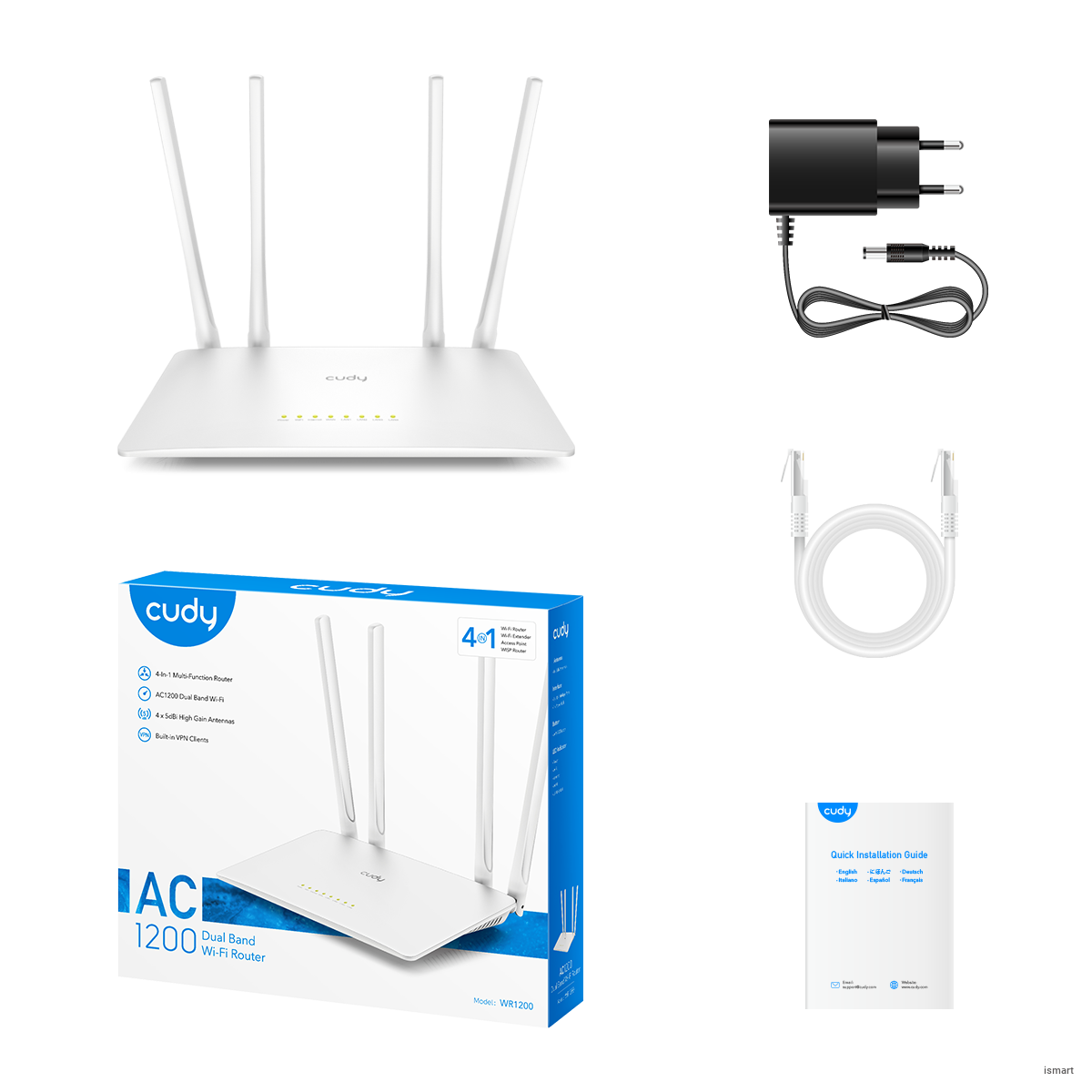

| Package Content |
| |
| Ordering Informaiton | Retail Package Dimension | 290×250×64 mm 11.42×9.84×2.52 inches |
| Units per Carton | 16 | |
| Carton Dimension | 53.8×51.6×31.3 cm |
Software Specs
| Model Version | WR1200 2.0 | |
|---|---|---|
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 40 | |
| Max Wi-Fi Channel Width | 80 MHz | |
| Wi-Fi Security | WPA-PSK (WPA/WPA2) | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | true | |
| General | Operation Modes |
|
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Client |
|
| VPN Performance |
| |
| DNS Options |
| |
| Wake on LAN | true | |
| Online Detection | true | |
| Management | All Devices Management |
|
| Per-Devices Management |
| |
| Content Management |
| |
| System | Local Control Method |
|
| Remote Control Method |
| |
| Firmware Upgrade | Local Update | |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel | Internet Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version |
| Charts | Internet Speed, WISP Speed, Wi-Fi Speed |
