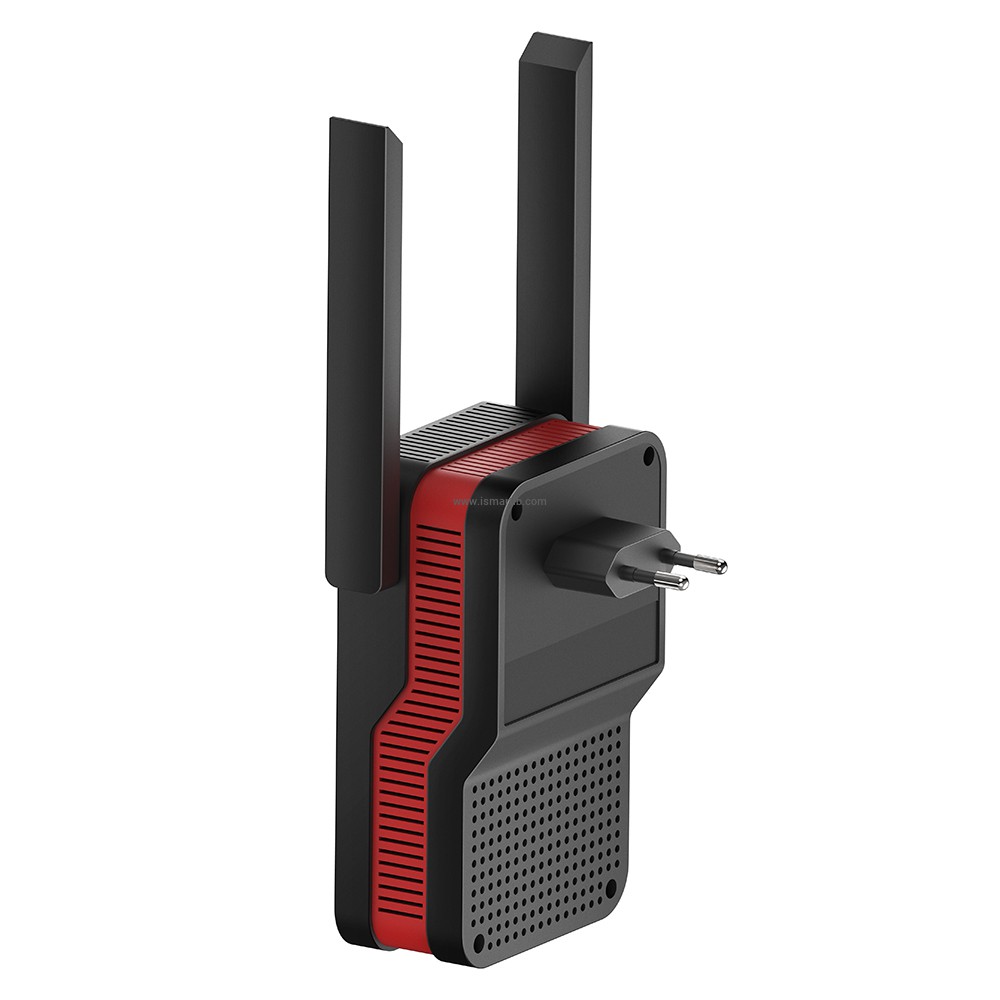

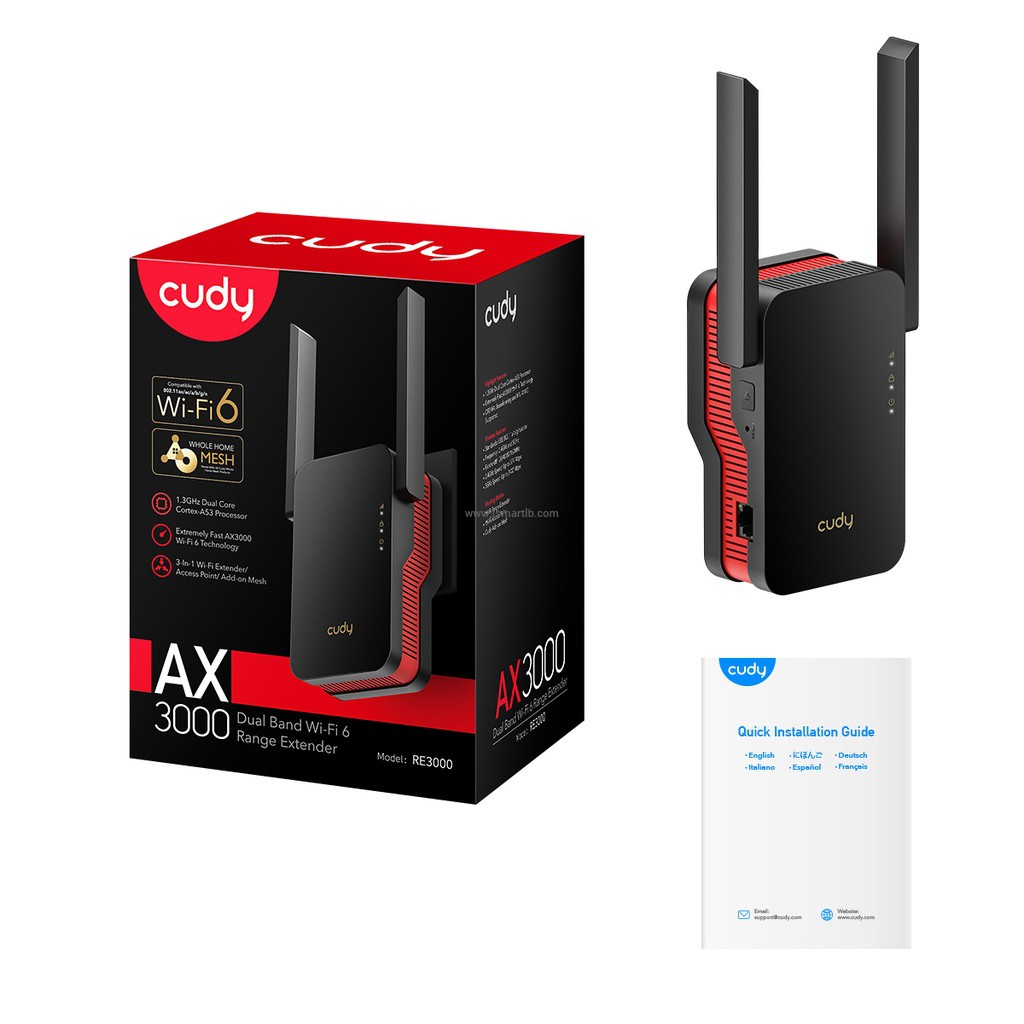

Eliminate Wi-Fi dead zones and enjoy seamless, high-speed internet throughout your home or office in Tripoli with the Cudy AX3000 Dual Band Wi-Fi 6 Range Extender (Model: RE3000). This powerful plug-in extender utilizes the latest Wi-Fi 6 (802.11ax) technology to deliver combined wireless speeds of up to AX3000 (2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz).
The RE3000 captures your existing Wi-Fi signal and rebroadcasts it with boosted strength and expanded coverage, ensuring smoother 4K streaming, lag-free online gaming, and faster downloads even in previously hard-to-reach areas. Its Gigabit Ethernet port also allows you to connect wired devices like smart TVs, gaming consoles, or PCs for optimal performance.
Designed for ease of use, the RE3000 features a simple WPS button setup, allowing you to expand your network with a single press. It's universally compatible with any standard Wi-Fi router or gateway and supports Cudy Mesh technology for seamless roaming within a larger Cudy mesh system. With its powerful 1.3 GHz Dual-Core CPU, OFDMA, MU-MIMO, and WPA3 security, the RE3000 is a robust and future-proof solution to extend your Wi-Fi coverage.
Key Features:
Feature | Specification |
Model | RE3000 |
Wi-Fi Standard | IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) (Wi-Fi 6) |
Wi-Fi Speed | AX3000 Total |
5 GHz: Up to 2402 Mbps (160 MHz bandwidth, 3x3 MIMO) | |
2.4 GHz: Up to 574 Mbps (2x2 MIMO) | |
Antennas | 2 × External Antennas + 1 × Internal Antenna |
Antenna Gain | 2.4 GHz Max: 2.1 dBi; 5 GHz Max: 3.9 dBi |
CPU | 1.3 GHz Dual-Core ARM Cortex-A53 Processor (MT7981BA+MT7976CN) |
Memory | 16 MB NOR Flash / 256 MB DDR3 RAM |
Ethernet Ports | 1 × 10/100/1000 Mbps Gigabit RJ45 Port (Auto-sensing) |
Power Supply | Direct AC Plug-in (100V-240V, 50/60Hz) |
Max Power Consumption | 10W |
Operating Modes | Range Extender (Repeater), Access Point (AP), Mesh Satellite |
Wireless Security | WPA-PSK, WPA2-PSK, WPA3 |
Advanced Features | OFDMA, MU-MIMO (DL/UL), Beamforming, 1024-QAM, WMM (QoS) |
Max Connected Devices | Up to 50-70 recommended (Total capacity up to 128) |
Management | Web UI, Cudy App |
Buttons | WPS Button, Reset Button |

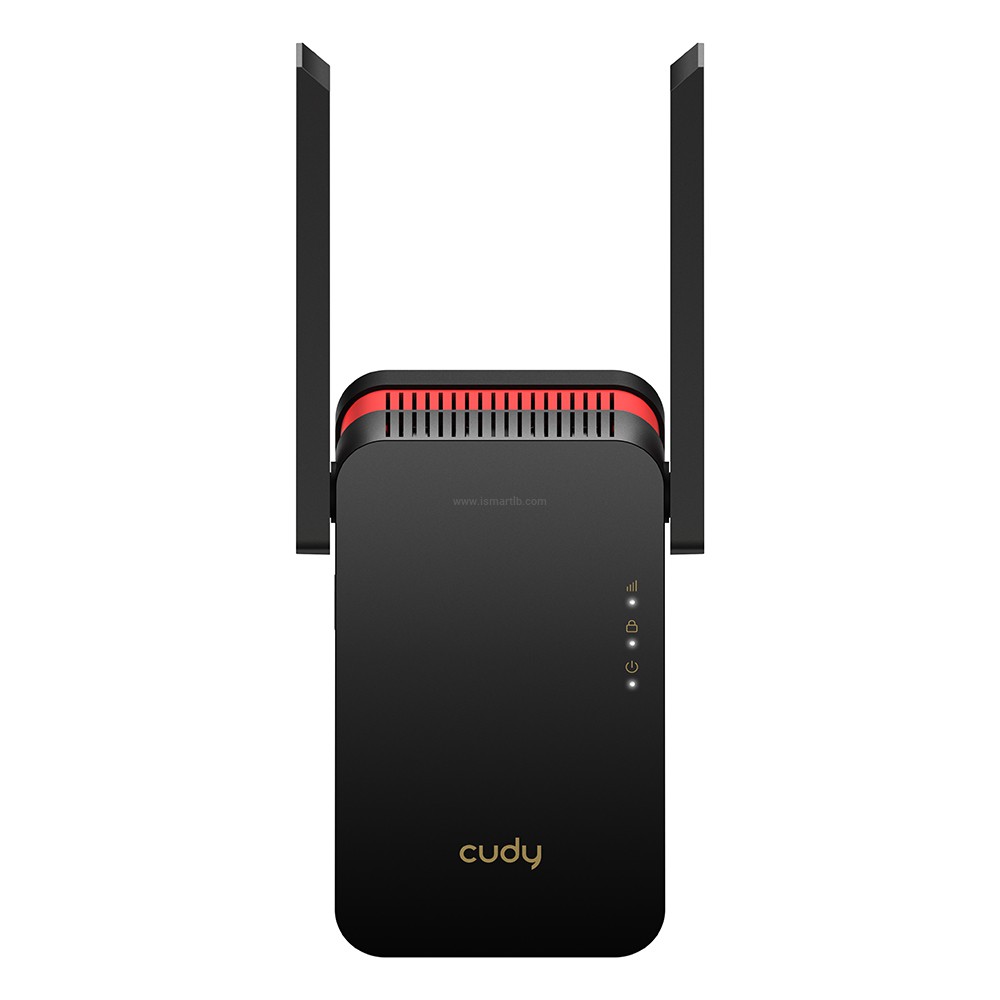

LED Indicators | WiFi Signal Strength, WPS, Power |
Dimensions (L x W x H) | 129.6 × 80 × 48.6 mm (5.1 × 3.15 × 1.91 inches) |
Operating Temp. | 0℃ ~ 50℃ (32℉ ~ 122℉) |
Certifications | FCC, CE |
