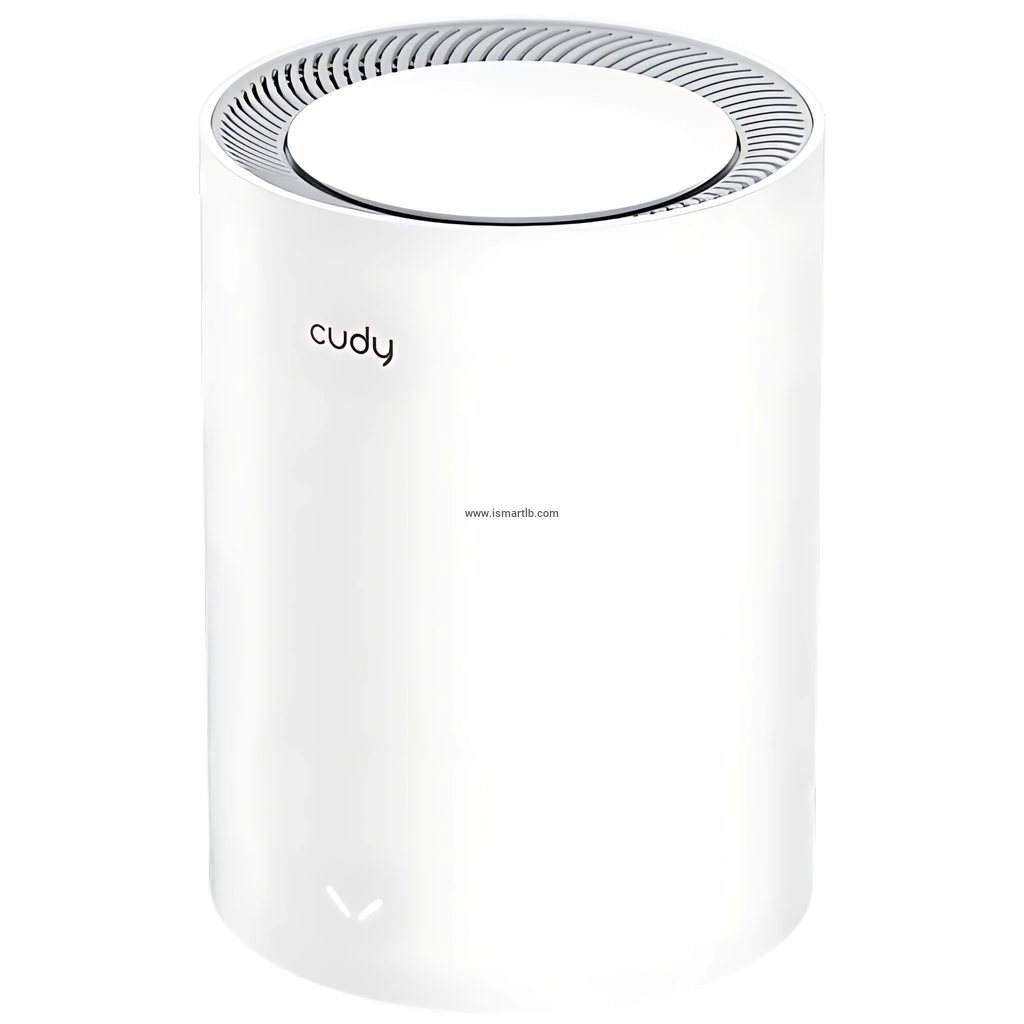

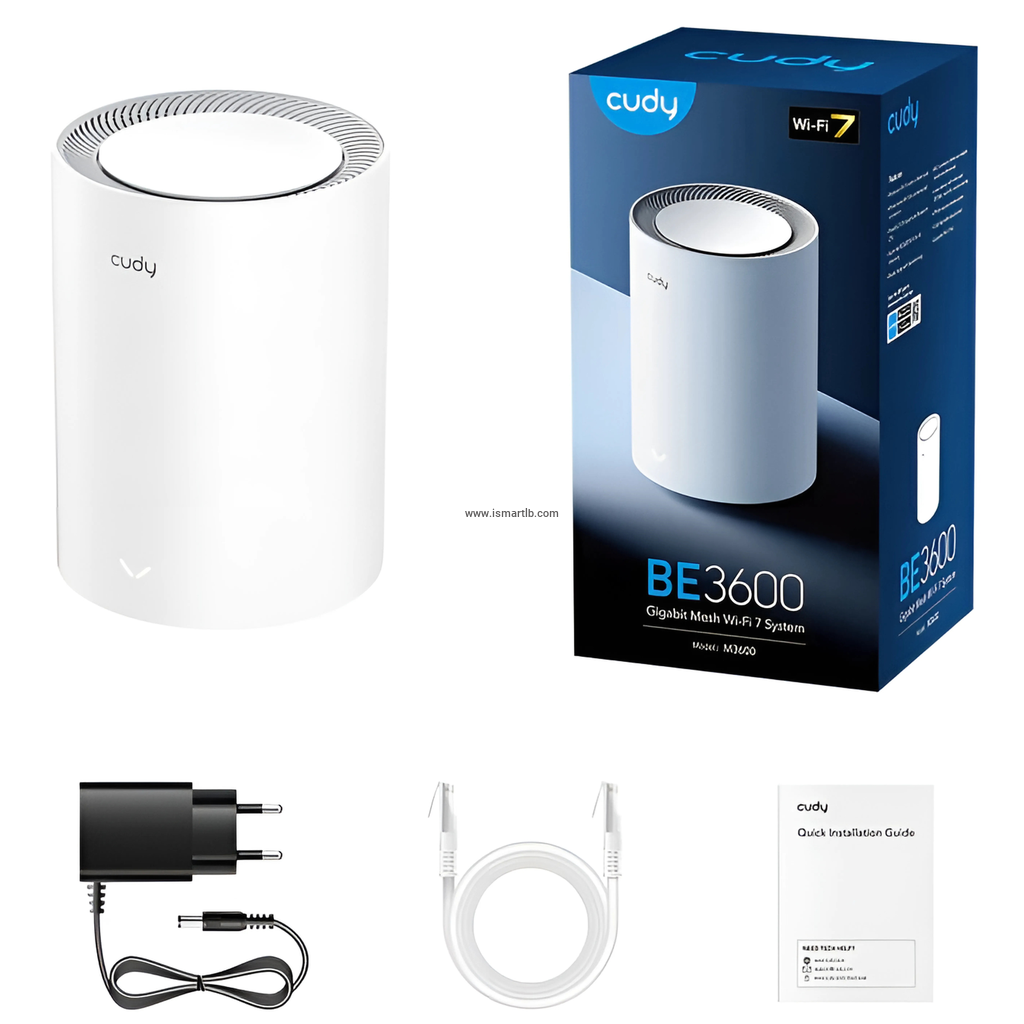

Cudy BE3600 Wi-Fi 7 Mesh Solution Model: M3600 (1-Pack)
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.
- 4-Stream Dual-Band Wi-Fi 7
- 2882 Mbps + 688 Mbps Wi-Fi 1
- 3× Gigabit Ethernet Ports
- 200 Connected Devices 2
- Cudy Mesh, VPN Server and Client
- Cudy App, Cloud Control
| CPU | CPU Details | 2.0 GHz Quad-Core, ARM Cortex-A7 |
|---|---|---|
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR3L | |
| Wireless | 5 GHz Wi-Fi Speed | 2882 Mbps |
| 2.4 GHz Wi-Fi Speed | 688 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Internal | |
| 5 GHz Antenna Gain Max | 5.5 dBi | |
| 2.4 GHz Antenna Gain Max | 5.4 dBi | |
| FEM or PA/LNA |
| |
| Beamforming | True | |
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') | |
| Indoor Coverage Reference | 2 Pack: 200 m² (2100 sq ft) 3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. | |
| Interfaces | Gigabit RJ45 Ports | 3 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED |
| |
| Physical Buttons |
| |
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC Input | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC | |
| Max Power Consumption (W) | 9W | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches | |
| Product Weight |
|
| Wireless | Wi-Fi Standards | Wi-Fi 7 |
|---|---|---|
| Max Wi-Fi Modulation | 4K-QAM | |
| Wi-Fi Efficiency |
| |
| Max Capacity | 512 | |
| Recommended Client Upper Limit | 200 | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | True | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | True | |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Wake on LAN | True | |
| Online Detection | True | |
| Management | Parental Controls |
|
| All Devices Management |
| |
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | True |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
|
