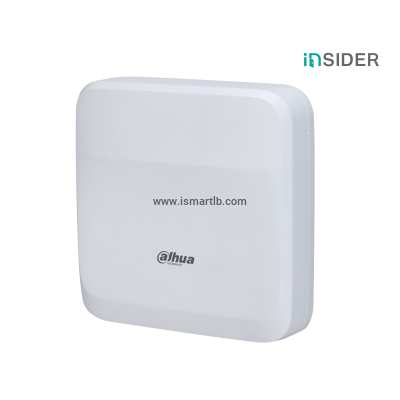

Access Controller

System

Main Processor

Embedded processor

Internet Protocol

P2P; IPv4; DNS; DDNS; TCP; UDP

Interoperability

ONVIF; CGI

SDK and API

Yes

Basic

Product Type

Controller

Buzzer

Yes

Casing Material

PC + ABS

Function

Unlock Mode

Card; remote; password; fingerprint; Bluetooth; combination unlock

Period List

128 periods

Holiday Period

128 periods

Network Update

Yes

Blocklist/Allowlist

Yes

Peripheral Card Reader

Supports 2 × RS-485 card readers; 2 × Wiegand card readers

Multi-user Authentication

Yes (Use with platform)

Real-time Monitoring

Yes

Multi-factor Authentication

Yes

Web Configuration

Yes

User

User (Card) Type

General user, VIP user, guest user, patrol user, blocklist user, and other users

Capacity

User Capacity

1,000 (main control mode), 10,000 (sub control mode)

Fingerprint Capacity

3,000

Card Capacity

5,000 (main control mode), 50,000 (sub control mode)

Bluetooth Card Capacity

5,000

Record Capacity

300,000

Port

RS-485

3

Wiegand

2 × input

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm Input

2 (digital quantity)

Alarm Output

2 (digital quantity)

Alarm Linkage

Yes

Exit Button

2

Door Status Detection

2

Lock Control

2

Alarm

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Supply

Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4

Protection

IK06

Power Consumption

Standby Power (no peripheral devices):

≤2 W

Working Power:

Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.)

Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.)

Product Dimensions

186.4 mm × 185.8 mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H)

Packaging Dimensions

254 mm × 243 mm × 86 mm (10.00" × 9.57" × 3.39") (L × W × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Operating Environment

Indoor

Gross Weight

0.99 kg (2.18 lb)

Installation

Surface Mount; Guide Rail Mount

Certifications

CE; FCC; UL
