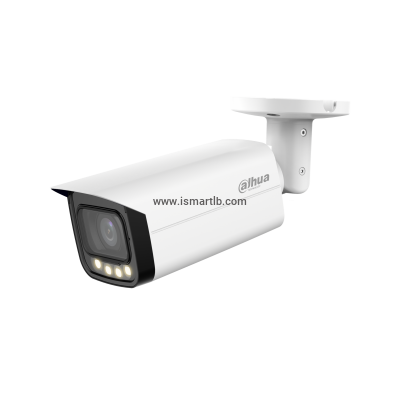

2MP Full-color HDCVI Motorized Vari-Focal Bullet Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

60 m (196.85 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

Yes

Lens Mount

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.0

Field of View

H: 103°–33°; V: 54°–18°; D: 124°–38°

Iris Control

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

46.6 m

(152.89 ft)

18.6 m

(61.02 ft)

9.3 m

(30.51 ft)

4.7 m

(15.42 ft)

T

133.3 m

(437.34 ft)

53.3 m

(174.87 ft)

26.7 m

(87.60 ft)

13.3 m

(43.64 ft)

Video

Video Frame Rate

CVI:

PAL: 1080p@25 fps

NTSC: 1080p@30 fps

AHD:

PAL: 1080p@25 fps

NTSC: 1080p@30 fps

TVI:

PAL: 1080p@25 fps

NTSC: 1080p@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480);

Day/Night

Color

BLC

BLC; HLC; WDR;

WDR

130 dB

White Balance

Auto;Area white balance

Gain Control

Manual;Auto

Noise Reduction

3D NR

Illumination Mode

Smart Light

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 8.4 W (12 VDC,LED on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Net Weight

0.77 kg (1.70 lb)

Gross Weight

1.05 kg (2.31 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
