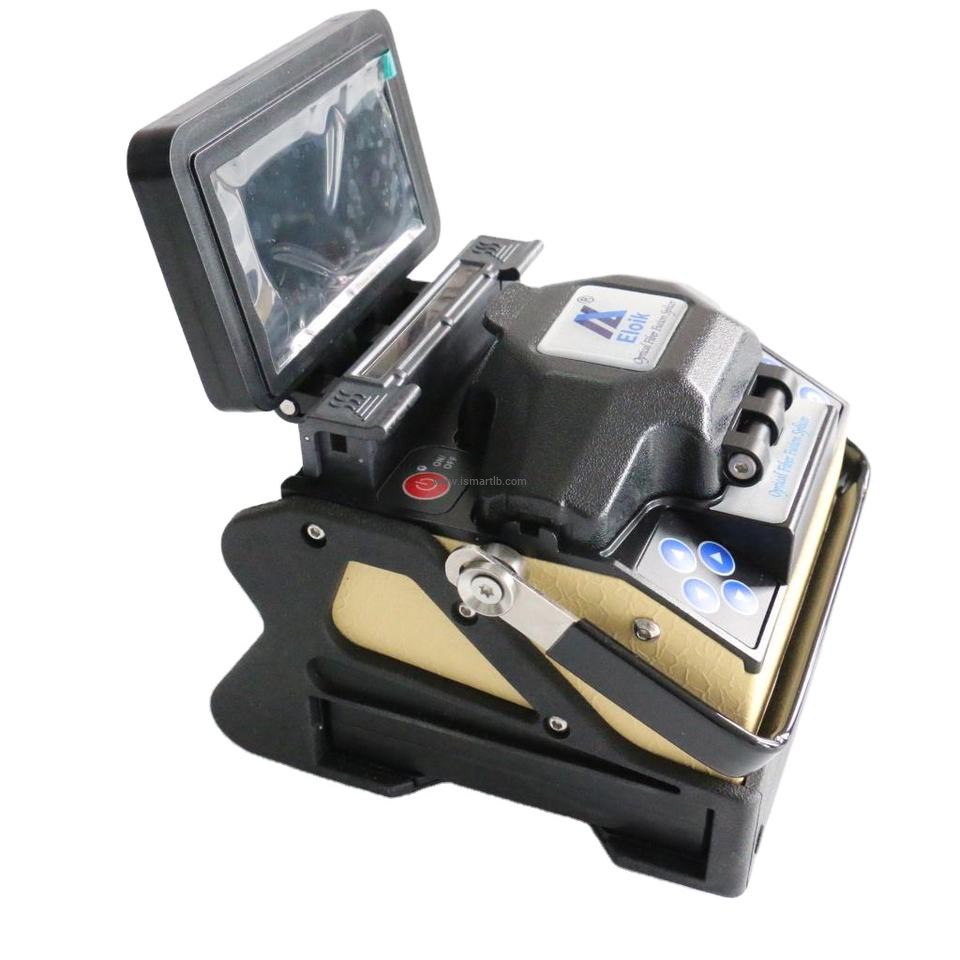

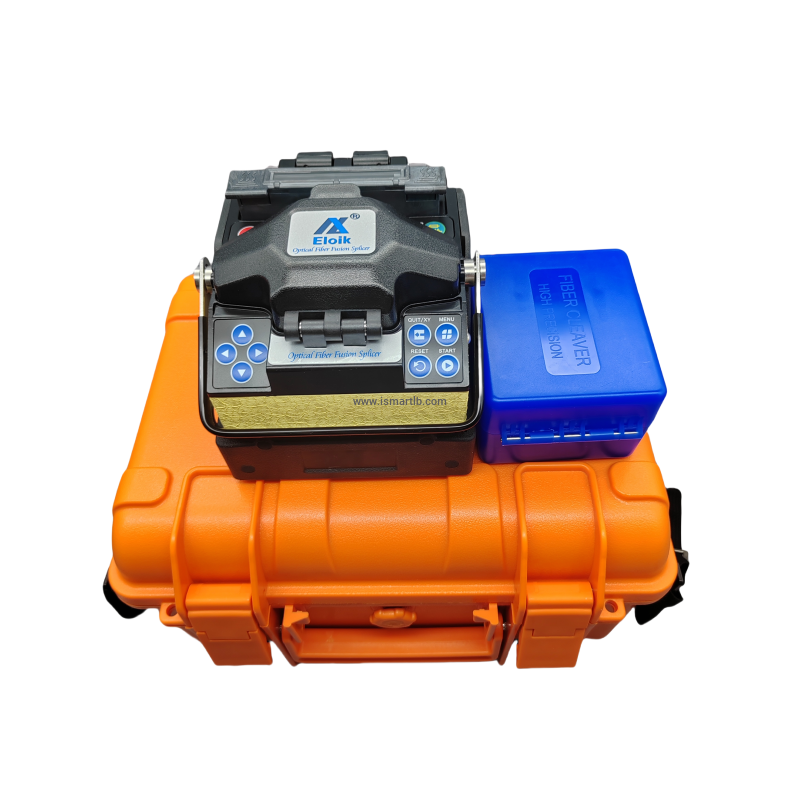

Fusion Splicer – Eloik 88A+
This high-performance fusion splicer features a 6-motor core alignment system, ensuring precise fiber splicing with low loss and fast operation. Suitable for FTTH, ISP, and backbone networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor System | 6 motors |
| Applicable Fiber Types | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655), EDF, BIF/UBIF, G657B3-1 |
| Fiber Core Number | Single Core |
| Fiber Diameter |
Cladding: 80–150 μm Coating: 125–1000 μm |
| Fusion Splice Mode |
Preset: 8 groups User Defined: 792 groups |
| Average Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB |
| Return Loss | > 60 dB |
| Splicing Time | 9 sec (Typical) / 6 sec (Fast Mode) |
| Loss Estimation | Available |
| Tension Test | ≥ 2 N (optional) |
| Display | 4.3-inch LCD screen |
| Languages | 10 languages (English, Chinese, French, Spanish, Russian, German, Polish, Italian, Portuguese, Thai) |
| Magnification |
X/Y: 180× X or Y: 350× |
| Power Supply | 13.5V / 5A adapter + 6800 mAh battery |
| Battery Performance |
>280 splice & heat cycles Charging time: 2 hours Recharge cycles: up to 500 |
| Storage Capacity |
10,000 splice records Image storage: optional |
| Interface | USB 2.0 |
| Operating Environment |
Altitude: 0–5000 m Temperature: -20°C to +55°C Humidity: 0–95% Wind: ≤15 m/s |
| Storage Environment |
-40°C to +80°C (except battery) Battery: -10°C to +40°C |
| Dimensions | 167 × 154 × 141 mm |
| Weight | 1.76 kg (without battery), 2.17 kg (with battery) |
| Fiber Holder |
Multi-functional holder (250 μm, 900 μm, 2–3 mm) SC/LC/FC optional |
| Sleeve Length | 60 mm, 50 mm, 45 mm, 40 mm, 25 mm |
| Heating Time | Fast heating: 9 sec (customizable) |
| Heating Temperature | 10°C – 260°C (customizable) |
