MikroTik Smart Switch, 5x SFP cages, 1x Combo port CRS106-1C-5S

Description:

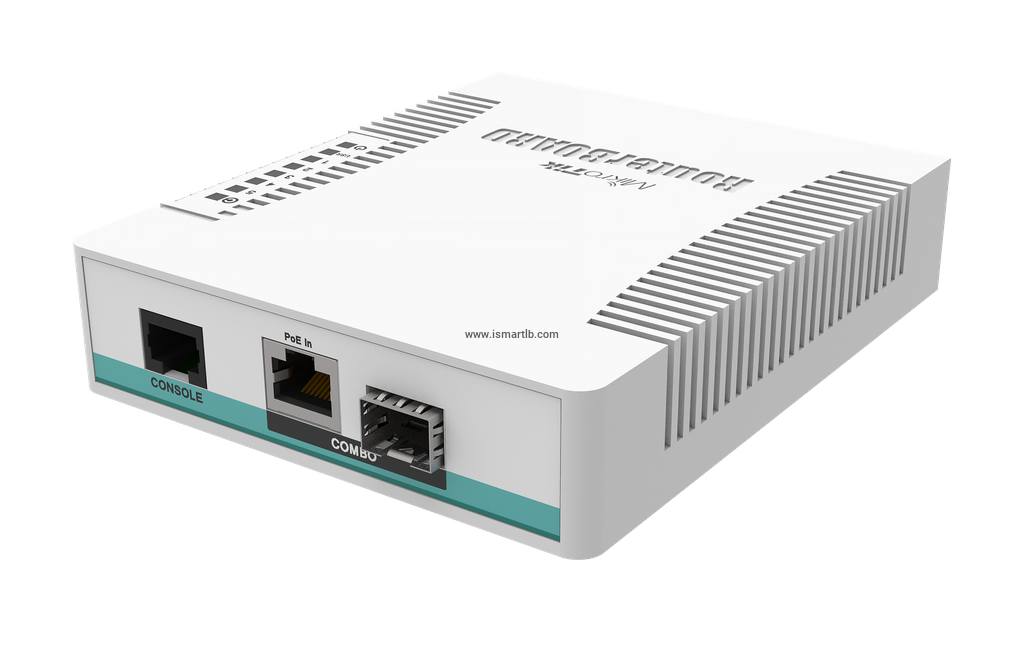

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.

Product code CRS106-1C-5S

Architecture MIPSBE

CPU QCA8511

CPU core count 1

CPU nominal frequency 400 MHz

Switch chip model QCA8511

Dimensions 114 x 137 x 29mm

RouterOS license 5

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -20°C to 70°C

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 11-30 V

Max power consumption 11 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 11-30 V

Ethernet

Details

Ethernet Combo ports 1

Fiber

Details

SFP ports 5

Peripherals

Details

Serial console port RJ45
