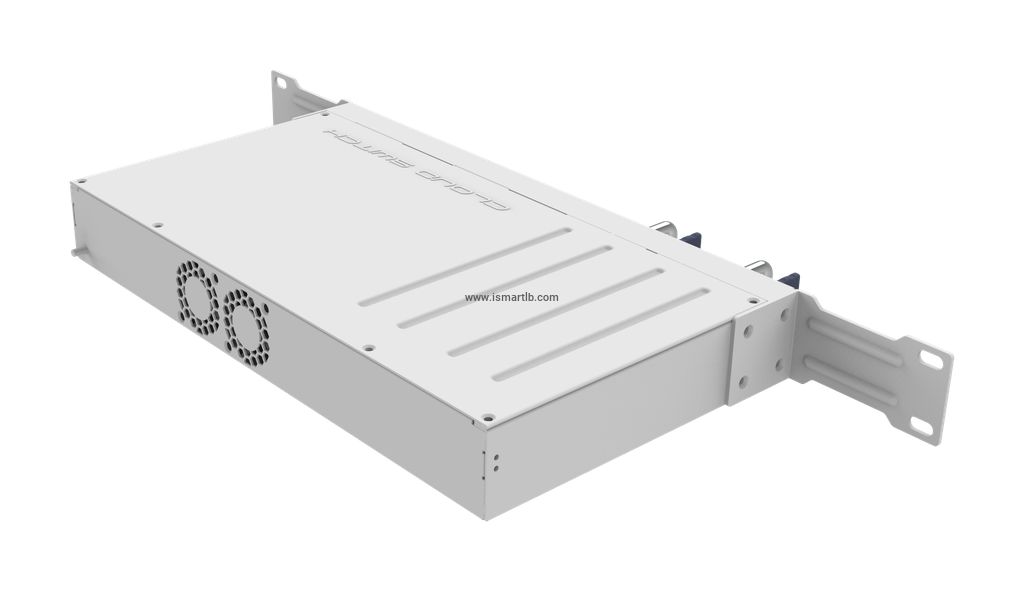

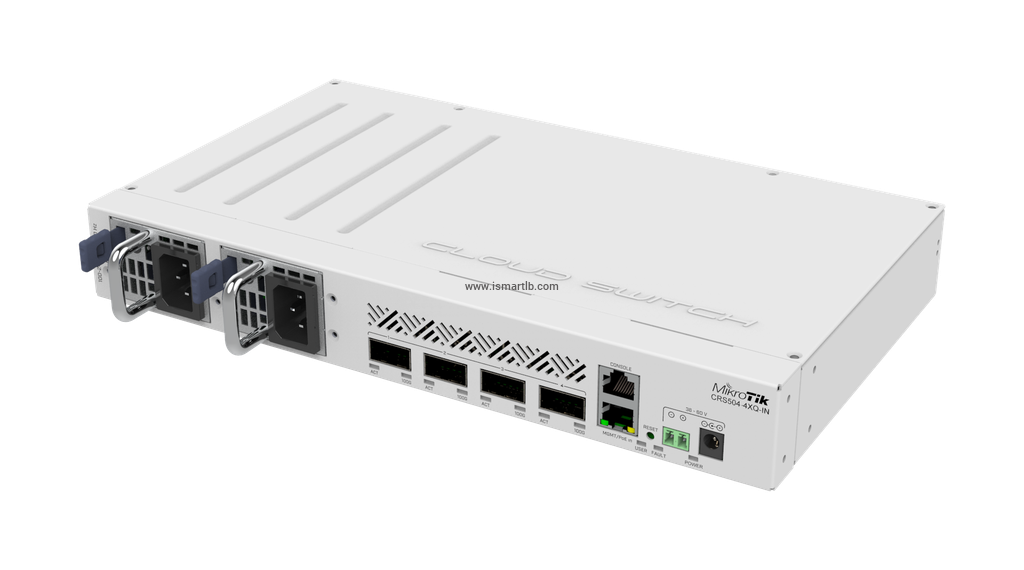

MikroTik Switch CRS504-4XQ-IN

Specifications

Details

Product code CRS504-4XQ-IN

Architecture MIPSBE

CPU QCA9531

CPU core count 1

CPU nominal frequency 650 MHz

Switch chip model 98DX4310

Dimensions 320 x 185 x 44 mm

RouterOS license 5

Operating System RouterOS v7

Size of RAM 64 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Powering

Details

Number of AC inputs 2

AC input range 100-240

Number of DC inputs 3 (DC jack, 2-pin terminal, PoE-IN)

DC jack input Voltage 36-57 V

2-pin terminal input Voltage 36-57 V

Frequency (Hz) 47-63

Max power consumption 41 W

Max power consumption without attachments 25 W

Cooling type 2 fans

PoE in 802.3 bt

PoE in input Voltage 43-57 V

Ethernet

Details

10/100 Ethernet ports 1

Fiber

Details

Number of 100G QSFP28 ports 4
