Mini K6 6 Motors Single Mode Fiber Fusion Splicer with Fast Splicing Wireless Operation & APP Compatibility
item | value |
Model Number | K6 |
Place of Origin | China |
Brand Name | K6 |
Warranty Time | 3 year |
Product name | Fiber Optic Fusion Splicer |
Function Port | OPM; VFL |
Motor | 6 motors |
battery | 7800mah |
Alignment Method | core to core |
Splicing time | fast mode 6s |
Heating time | fast mode 13s |
USB port output | 5V/500mA |
Operating Temperature | 10~+50 |
Product Description

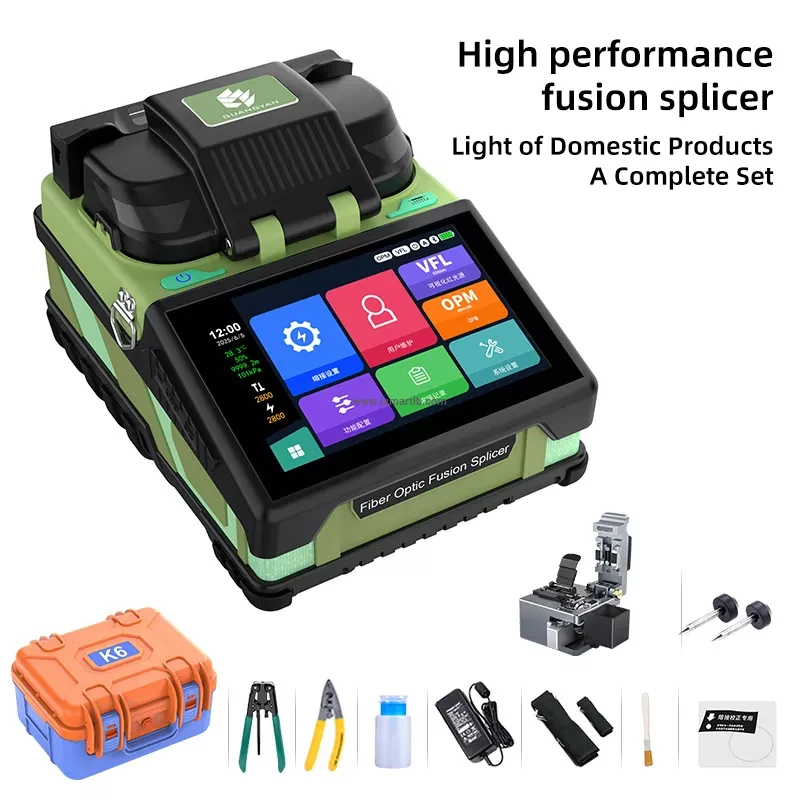

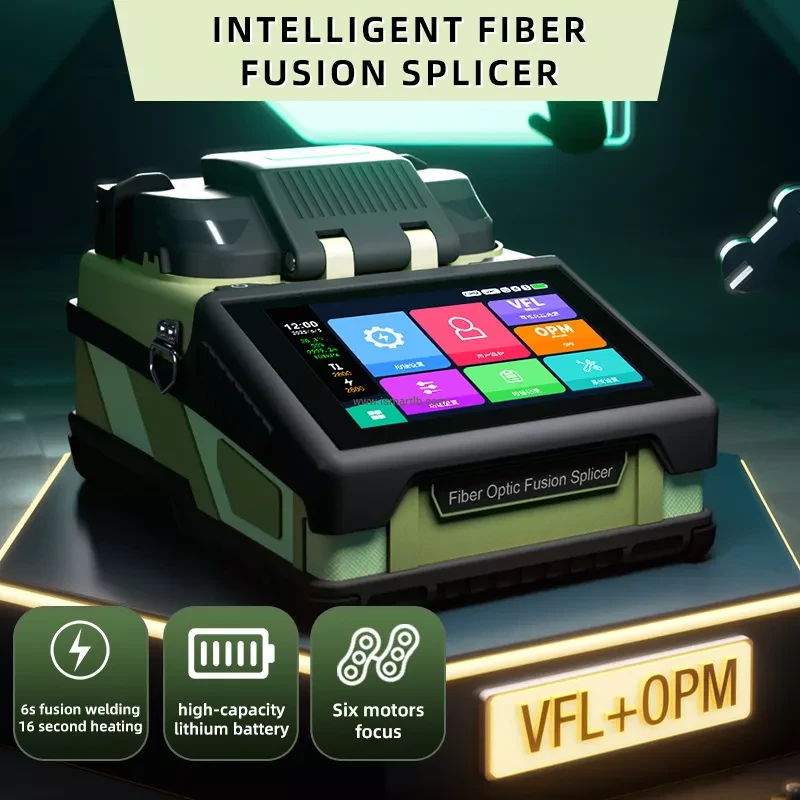

K6 Fiber Optic Fusion Splicer： Efficient and Intelligent, Redefining the Fiber Splicing Experience
Core Features: High Efficiency, Intelligent Operation, User-Friendly

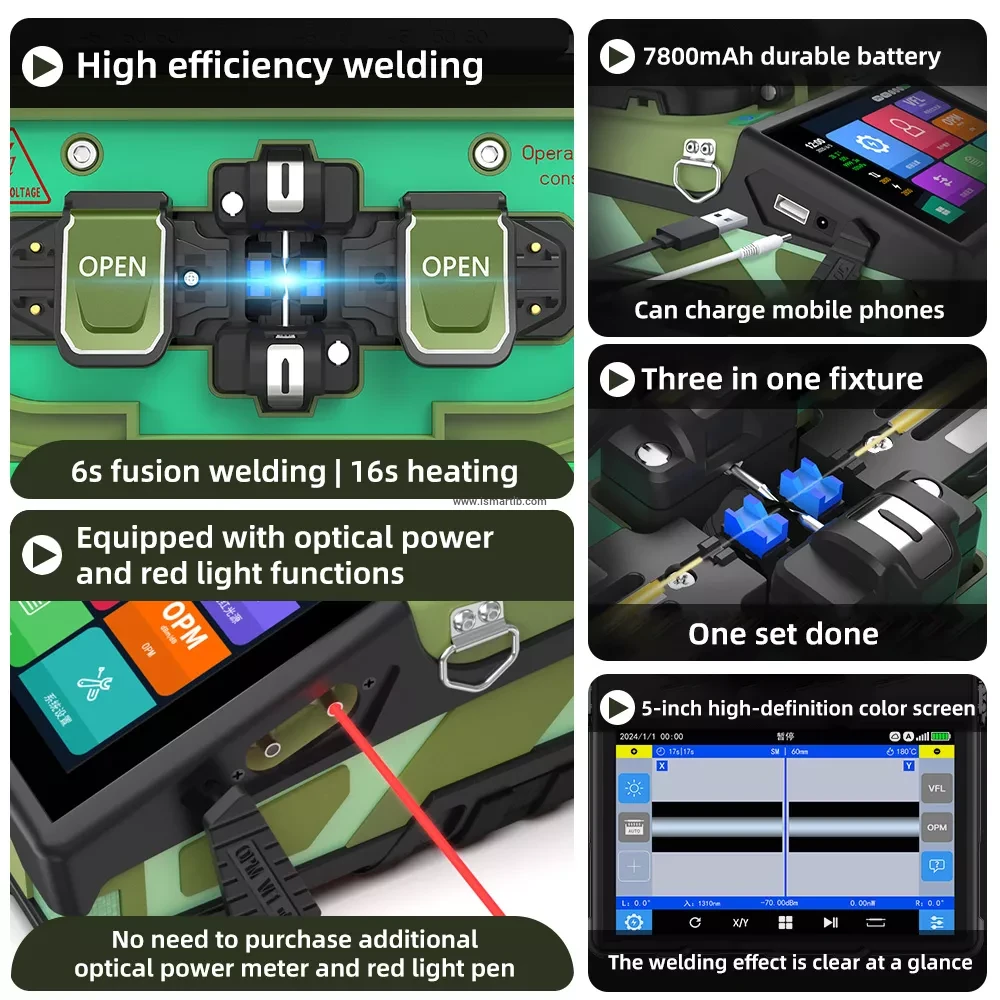

The K6 Fiber Splicer features a 6-motor fully automatic system. Utilizing six-motor auto-focus technology, it precisely aligns various fiber cores and cladding types—whether single-mode, multi-mode, or specialty fibers—ensuring stable splicing and significantly reducing operational complexity. Its fusion efficiency is remarkable, completing typical SMF fiber splicing in just 6 seconds with a heating time of only 16 seconds (adjustable from 0-60 seconds), significantly shortening large-scale cabling construction cycles.

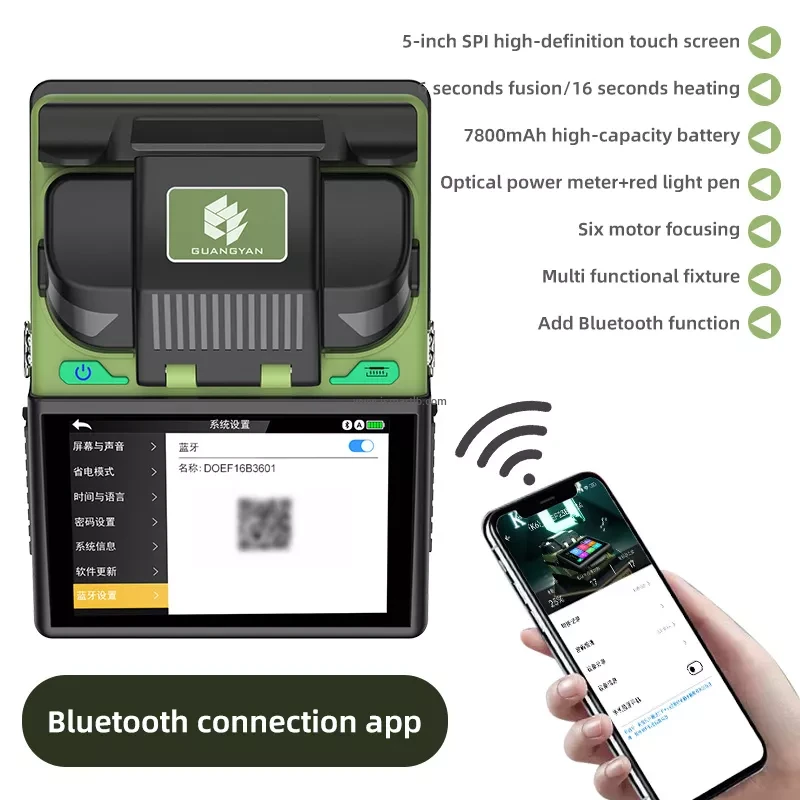

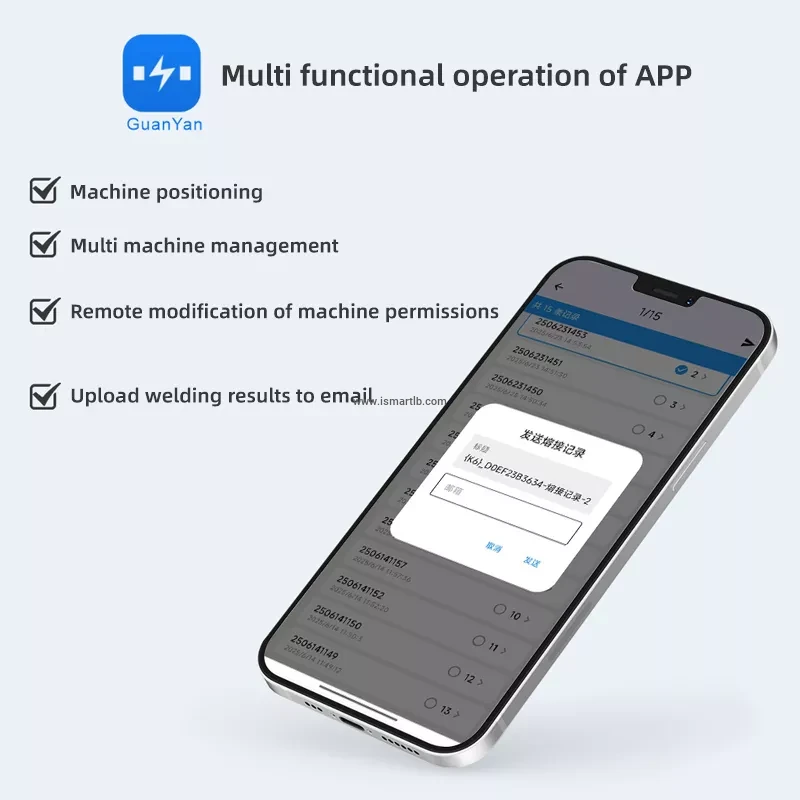

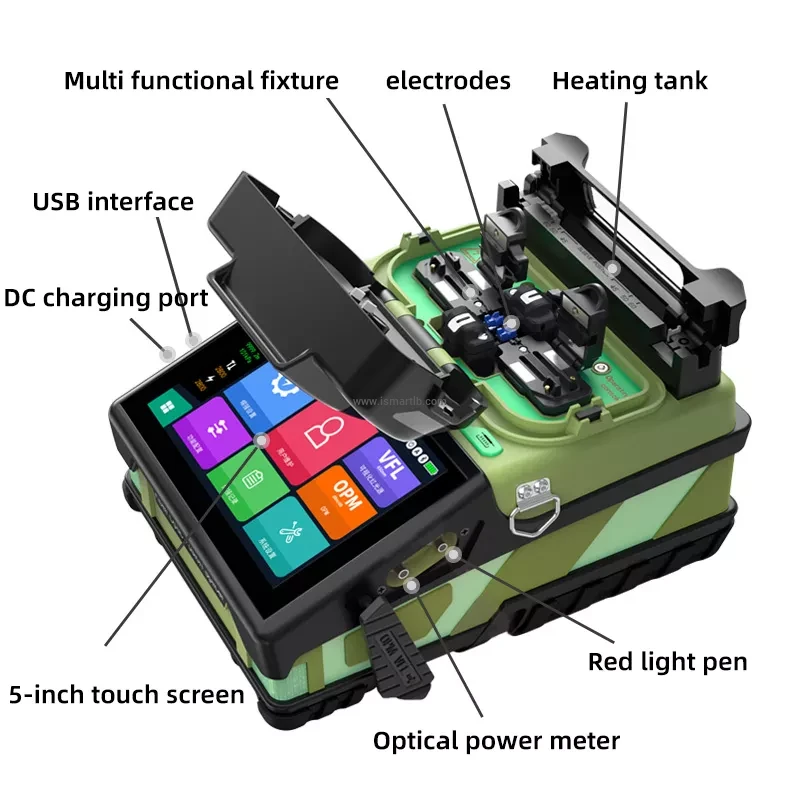

The device integrates an OPM optical power meter and a VFL red light fault locator, enabling “splicing + testing” integrated operations to reduce equipment carrying burdens. A 5-inch capacitive HD touchscreen with a GUI interface ensures intuitive and convenient operation. Remote control via an app enables real-time monitoring of the splicing process and access to records. Additionally, a horizontal angle prompt function ensures splicing accuracy, while a one-button maintenance design simplifies cleaning and calibration procedures, reducing the risk of malfunctions.
Hardcore Specs: Stable and Reliable, Adaptable to Multiple Scenarios
The K6 Fusion Splicer demonstrates powerful performance through its hardcore specifications. Dual-mode alignment (core/cladding) accommodates various fiber types, with pull-out force testing meeting standards at 1.96-2.25N. Low loss values—0.02dB for SMF and 0.01dB for MMF—ensure signal stability.
Exceptional battery life and environmental adaptability. The 7800mAh battery supports 240 fusion cycles with 3.5-hour fast charging. Operates reliably at temperatures -15°C to 50°C and altitudes up to 5000m, with storage temperatures ranging from -40°C to 80°C.
Practical and portable design. Features 300x/150x magnification, 10,000-set recording storage, and compatibility with multiple heat-shrink tube specifications. Dimensions: 201mm × 148mm × 119mm; weight: 1.81kg. Enables flexible operation in confined spaces.
Applicable Scenarios: Suitable for all network engineering scenarios
Whether it's the need for rapid fiber splicing during FTTH (Fiber-to-the-Home) deployments, the requirement for precision splicing and fault detection in security surveillance cabling, or emergency repairs in remote areas demanding high device endurance and environmental adaptability, the K6 Fiber Splicer delivers flawless performance. With an electrode lifespan of 3,000 splices, it reduces consumable replacement frequency and lowers project costs.
