Description

The mini pro otdr is compact and easy to carry. It adopts a 3.5-inch high-definition touch screen, supports multi-touch and smooth operation. Internal integration of OTDR, event map, optical power, red light, flashlight and other functions in one, to meet various test needs in different occasions. Among them, the mini optical time domain reflectometer function adopts 1550nm wavelength and built-in high-efficiency wavelength isolator. lt can perform optical test on 1490nm and 1577nm links. The Multi-Function optical time domain reflectometer supports up to about +10dBm with opticatest capability. The maximum measurement range of mini otdr is 80km.

The mini pro otdr is used to measure the length, loss, connection quality and other parameters of the optical fiber. It can easily test the breakpoint, bend, and loss point of the optical fiber link. The mini optical time domain reflectometer is suitable for line maintenance and emergency repair testing by installation and main-tenance personnel.

Features：

• Small and beautiful appearance, easy to carry;
• 3.5-inch high-definition full touch screen support multi-touch friendly interaction;
• Rich functions, one machine in hand, all installation and maintenance;
• Working wavelength 1550nm, support on live test;
• Battery working time is more than 4 hours, safety gurantee;
• Small test blind area, the maximum test range is 80 km;
• mini pro otdr has high-performance processor, smooth control;
• Intelligent link analysis, intuitive display of analysis events;

learn more：How to Test Fiber Cable by OTDR

How to Choose a Suitable OTDR?

How to Choose the Right Fiber Optic Cable Test Equipment for Beginners

Specification:

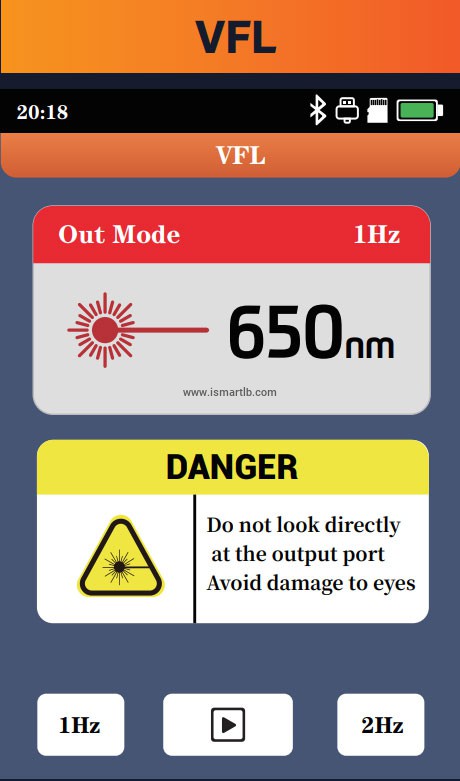

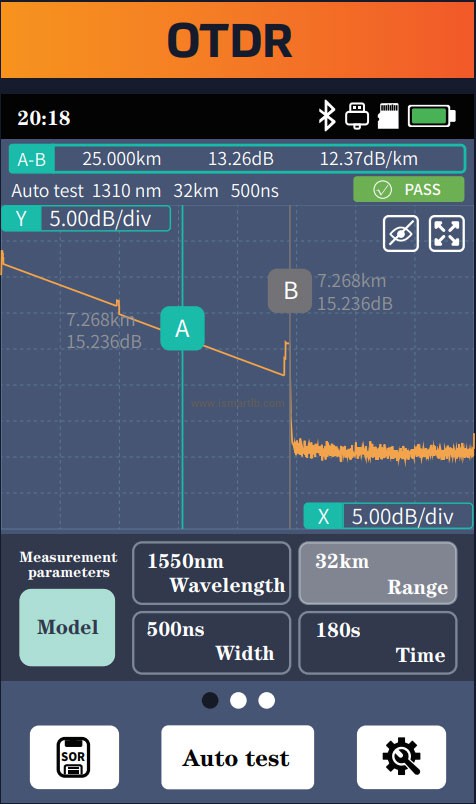

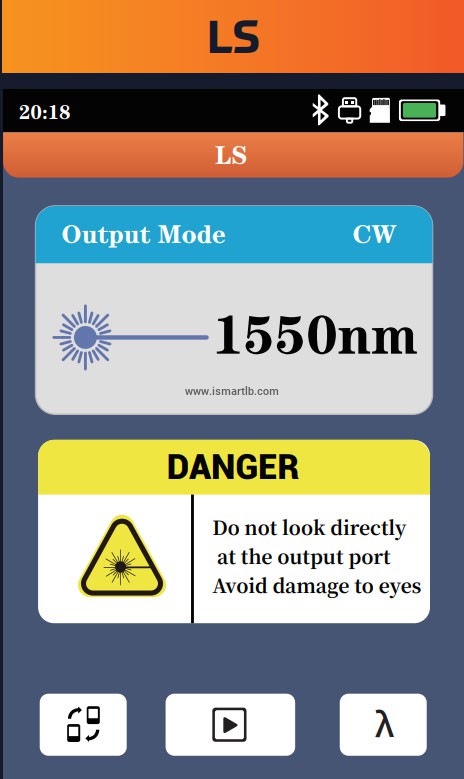

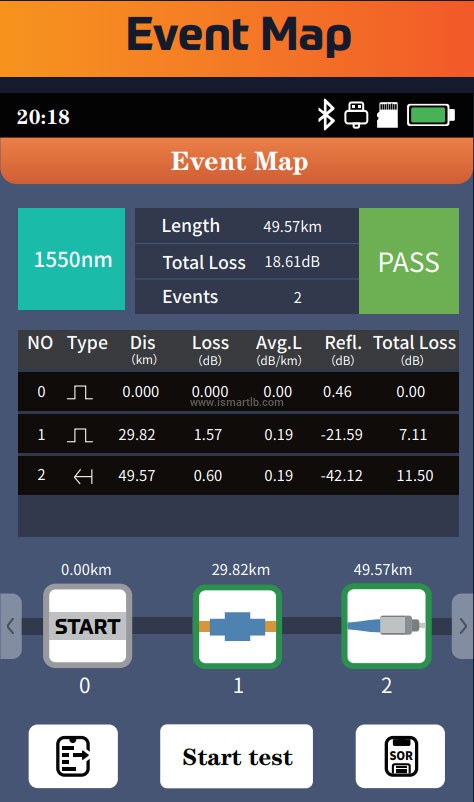

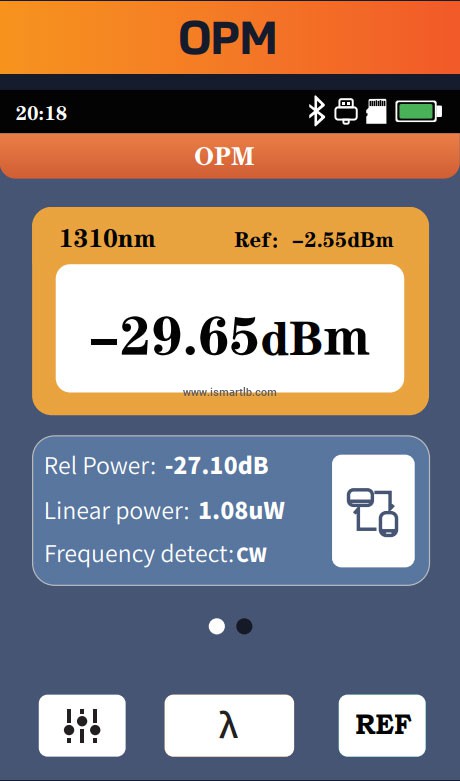

OTDR、Event Map、OPM、VFL、LS、Flashlight

Specification
