MOT-31 Multi-Function OTDR Optical Fiber And Network Cable Tester with IP Scan Port Flashing And Other Network Tests

(0 reviews)
Estimate Shipping Time: 3 Days
Add to wishlist Add to compare
Sold by ISMART
Please Login to view price
Share
Seller
ISMART
Beirut
(0 customer reviews)
Visit Store
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description

4inch OTDR Tester, 800*480 resolution, RJ45 TDR cable & UTP cable test, stable laser source, OPM & VFL Dual wavelength 1310/1550nm, dynamic 26/24dB

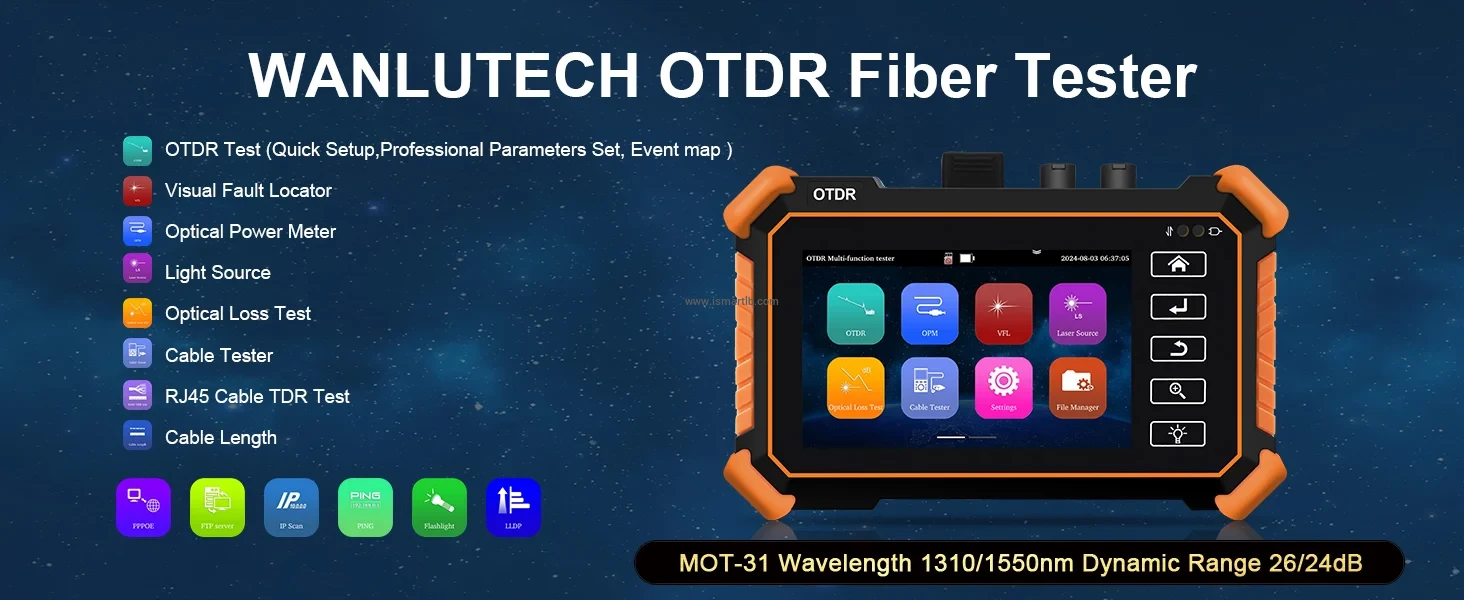

Singlemode OTDR Fiber Optic Tester, MOT-31 1310/1550nm 26/24dB 4'' Touchscreen OTDR Test Built-in VFL OPM LS Event Map OLT (Optical Loss Test) Functions RJ45 Cable Test Network Tools SC/UPC

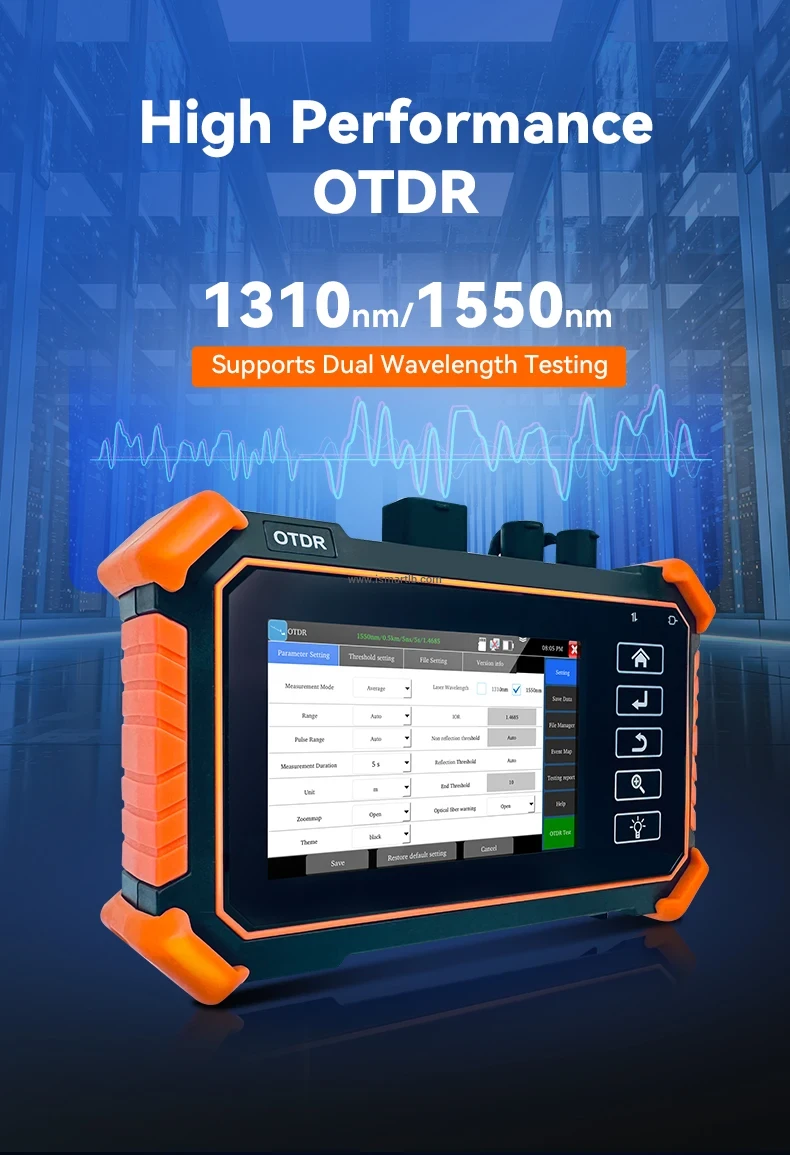

  • [ Singlemode OTDR Fiber Optic Tester ] OTDR test: wavelength 1310nm/1550nm, dynamic range 26dB/24dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results.(PLEASE NOTE: this 1310nm/1550nm model can not test live fiber)
  • [ OPM VFL LS OLS ] WANLUTECH MOT-31 combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm, measurement range ,-70 ～+6dBm, for optical power testing and fiber link loss relative measurement); VFL (Visual Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)

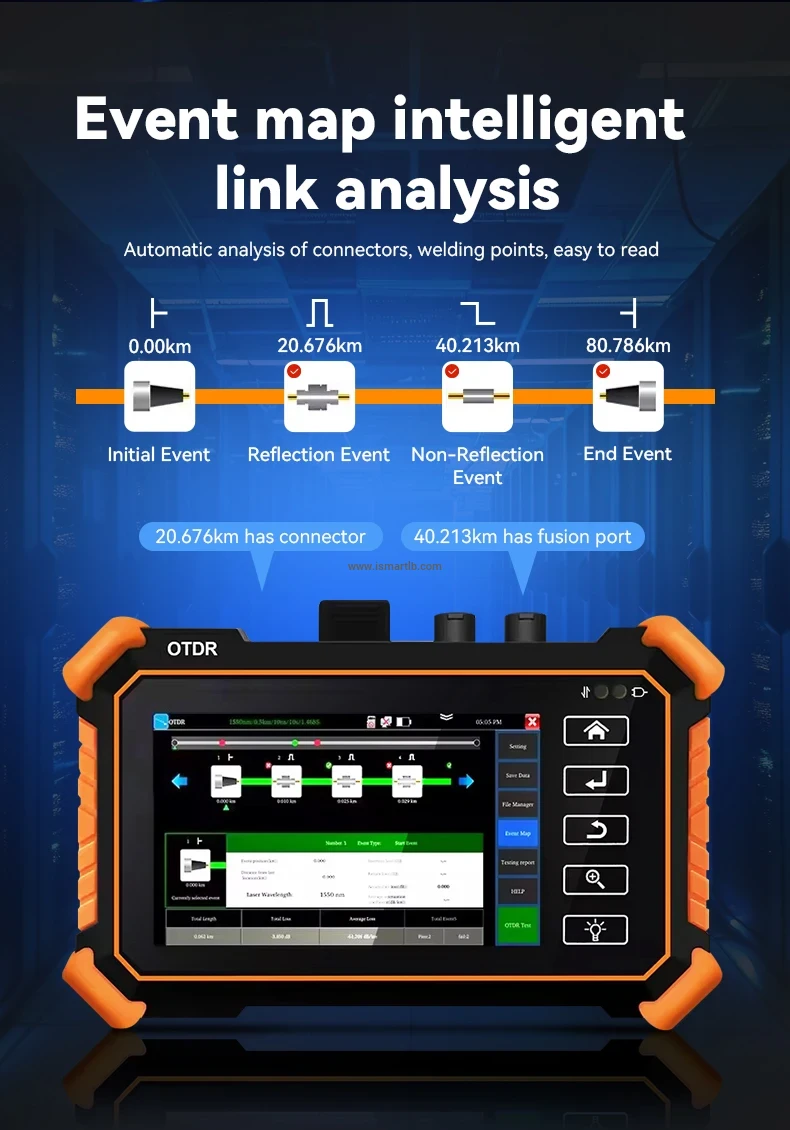

  • [ Event Map & Data Storage ] Visualise the results of fibre optic link inspections. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Dead Zone ≤1.6 m, Attenuation Dead Zone ≤8 m.) Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. SOR standard file format PDF/EXCEL

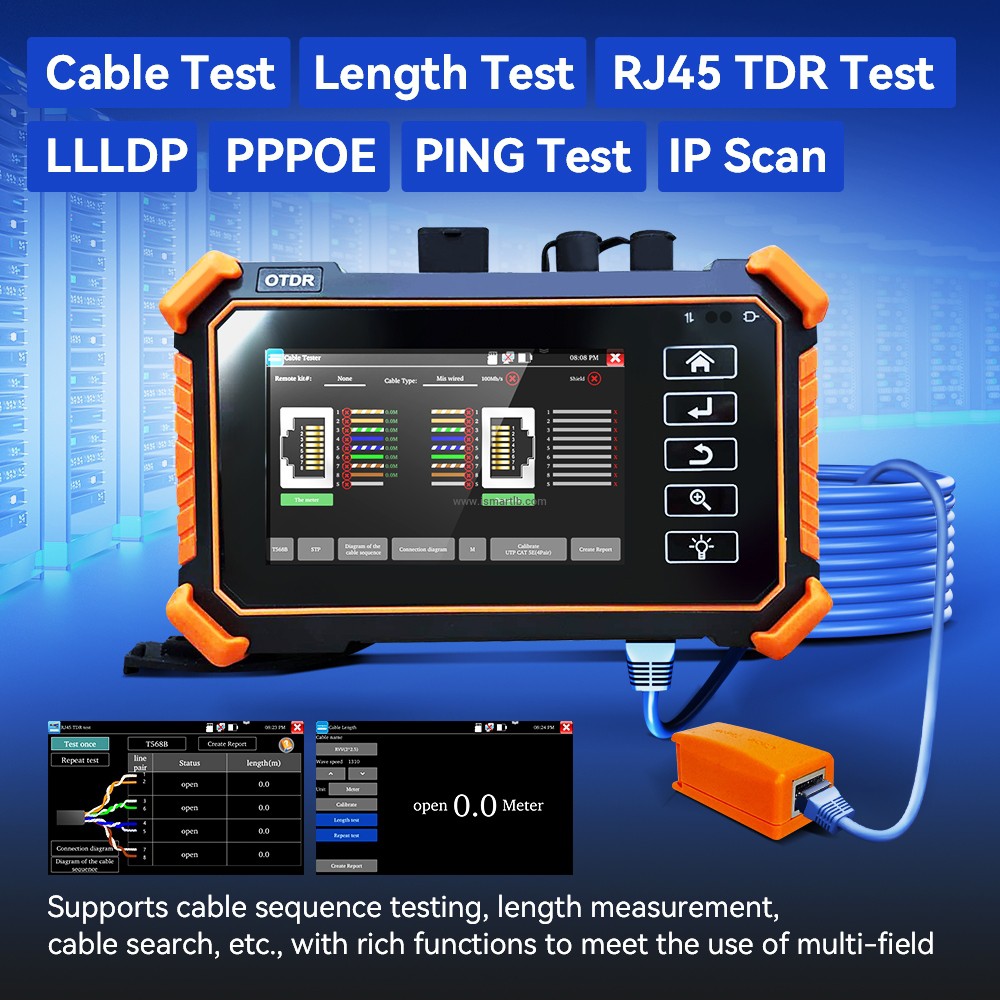

  • [ RJ45 Cable Tester & Network Test Tools ] RJ45 CABLE TDR Test: it can test cable pair status(open or shortcuirt), length( max 600meters ); UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug; Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters. Network Test: IP address scan, PING test, PPPOE, LLDP, FTP, file management.
  • [ Basic Fiber Tester ] 4 inches touch screen; SC/UPC connector, packing included 1x romte kit, 1x Type-C power cable; Built-in 3.7V/4000mAh battery, Single Gigabit Ethernet port, 10/100/1000Mbps adaptive; power input:DC5V/2A
  • [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet.
