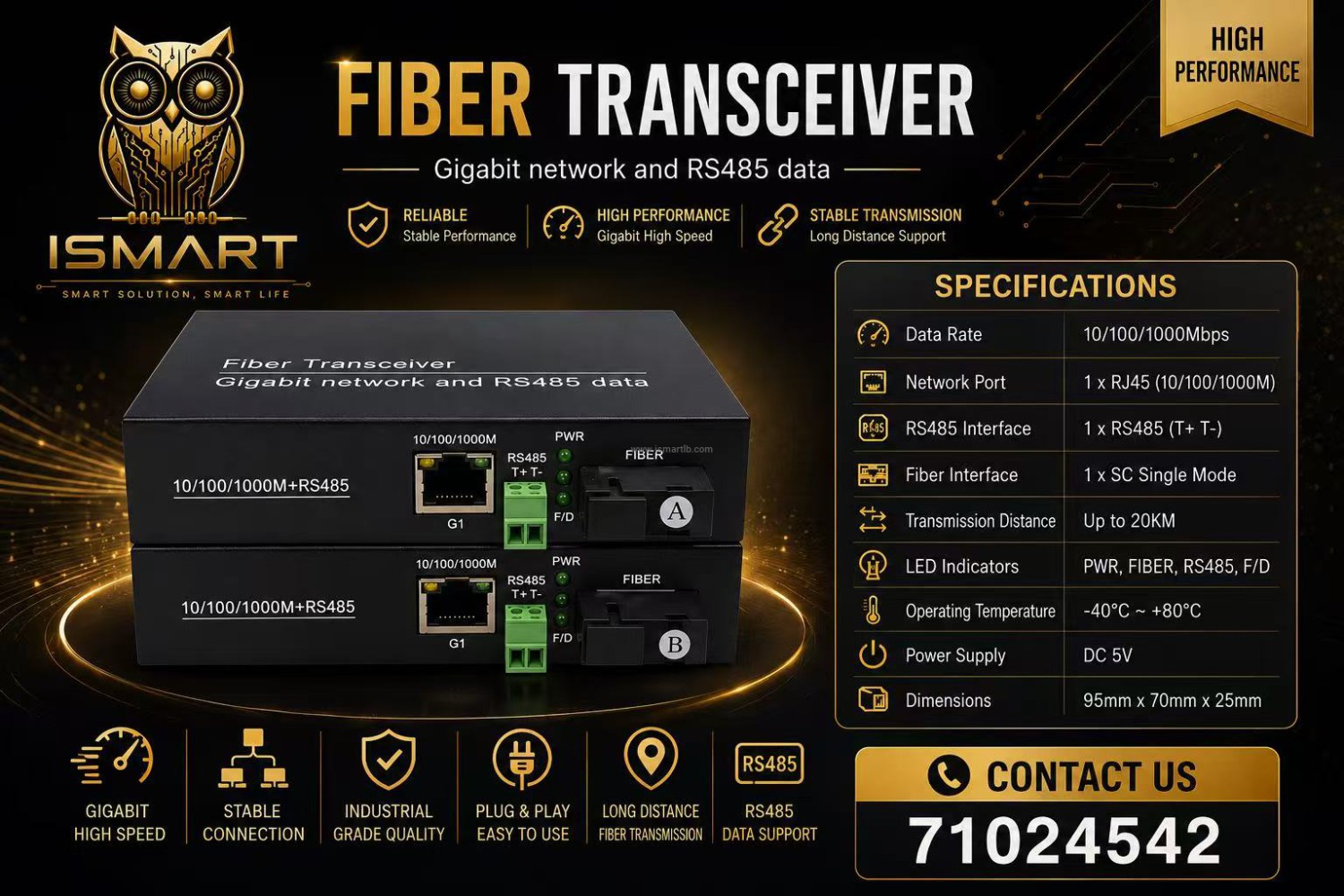

Gigabit RJ45 Network port + 1CH bidi RS485 media converter.

The ISMART Fiber Transceiver is a professional industrial communication solution designed to transmit Gigabit Ethernet network data and RS485 serial data over fiber optic cable.

It combines 10/100/1000Mbps Ethernet and RS485 communication in one compact device, providing a stable, reliable, and long-distance connection for networking, surveillance, industrial automation, access control, and other communication applications.

Key Features

* Gigabit Ethernet: Supports 10/100/1000Mbps network transmission.
* RJ45 Network Port: 1 × RJ45 10/100/1000M Ethernet interface.
* RS485 Data Transmission: Dedicated RS485 interface with T+ / T− terminals.
* Fiber Optic Transmission: SC single-mode fiber interface.
* Long-Distance Communication: Supports fiber transmission distances of up to 20 km.*
* Stable & Reliable: Fiber transmission provides excellent resistance to electromagnetic interference and is suitable for demanding environments.
* Plug & Play: Simple installation with no complicated configuration required.
* Industrial-Grade Design: Durable metal housing for reliable continuous operation.
* LED Status Indicators: Convenient indicators for power, fiber/data, and communication status.
* Wide Operating Temperature: Approximately −40°C to +80°C.*
* Power Supply: DC 5V.*
* Compact Size: Approximately 95 × 70 × 25 mm.*

Interfaces

Network

* 1 × RJ45 Ethernet port
* 10/100/1000Mbps
* Auto-negotiation

RS485

* 1 × RS485 terminal
* T+ / T−
* Suitable for bidirectional serial data communication

Fiber

* 1 × SC fiber optic interface
* Single-mode
* A/B paired transceiver configuration

Typical Applications

Suitable for:

* CCTV and IP surveillance systems
* Industrial automation
* RS485 equipment
* Access control systems
* Building automation
* Network extension
* Remote monitoring
* Factory communication systems
* Security systems
* Long-distance Ethernet connections
* Equipment requiring simultaneous Ethernet + RS485 over fiber

Main Advantages

High Speed • Long Distance • Stable Connection • RS485 Support • Fiber Optic Transmission • Industrial Quality • Easy Installation • Plug & Play
