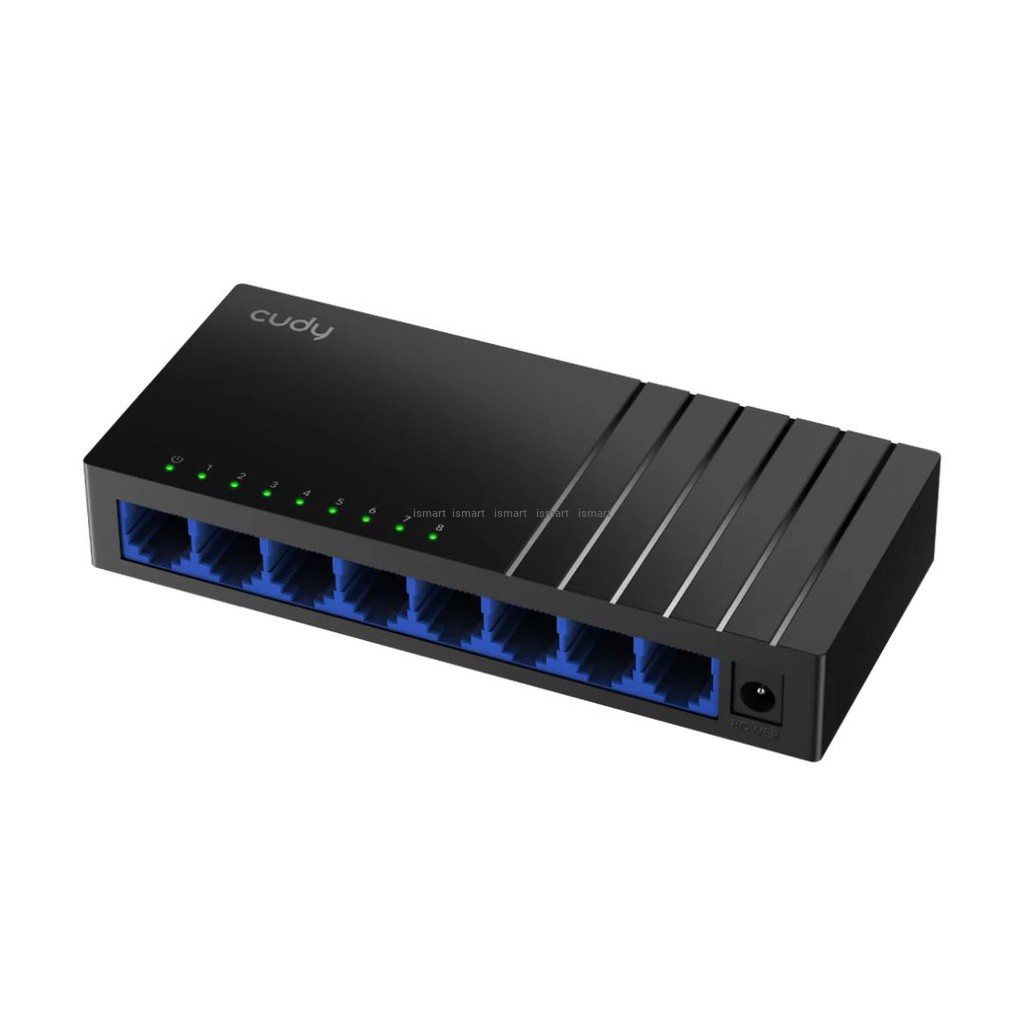

Cudy 8-Port Gigabit Desktop Switch, Model: GS108D
(0
reviews)
Estimate Shipping Time:
3 Days
Inhouse product
Please
Login
to view price
Share
Top Selling Products
-
Login to view price -
Login to view price
-
Login to view price
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Cudy 8-Port Gigabit Desktop Switch, Model: GS108D 4.0
● 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
● IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab standard
● Supports MAC address auto-learning and auto-aging
● Non-blocking switching architecture enables
full wire-speed packets forwarding and filtering
● Cudy green technology saves the power up to 85%
● Plug & Play, Desktop design
Specifications:
| Model Version | GS108D 4.0 | |
|---|---|---|
| Protocols | 802.3 Protocols |
|
| CPU | Chipset | EN8851F |
| Interfaces | Gigabit RJ45 Ports | 8 |
| LED |
| |
| Power Input | DC Jack | |
| Performance | MAC Address Table | 8192 |
| Max Switching Capcity | 16 Gbps | |
| Max Forwading Rate | 11.904 Mpps | |
| Jumbo Frame | 15 KB | |
| Packet Buffer | 4 Mbit | |
| Power | Basic Power Saving | 1 |
| Power Methods | DC | |
| DC | 5V 0.55A | |
| Max Power Consumption (W) | 2.75W | |
| Idle Power Consumption (W) | 2.2W | |
| Reliability | Lightning/Surge Protection | 2kV |
| ESD Air Protection | 8kV | |
| ESD Contact Protection | 4kV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing | |

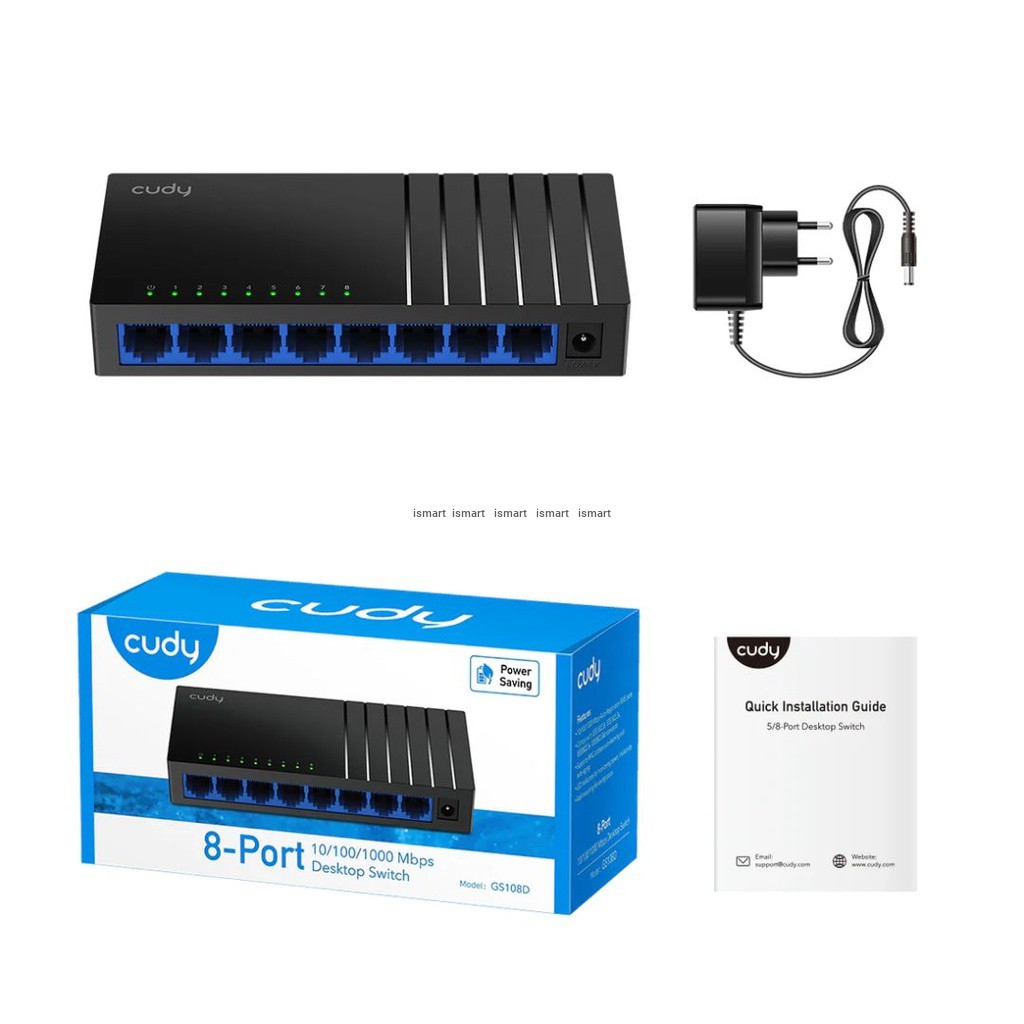

| Package Content |
| |
| Mechanical | Installation |
|
| Casing Material | Plastic | |
| Dimension | 138×61.5×24 mm 5.43×2.42×0.94 inches | |
| Product Weight | EU: 87 g (3.07 oz.) | |
| Ordering Informaiton | Retail Package Dimension | 151×75×63 mm 5.94×2.95×2.48 inches |
| Retail Package Weight | EU: 200 g (3.07 oz.) | |
| Carton Net Weight | EU: 10.0 kg (22.05 lbs) | |
| Carton Gross Weight | EU: 10.8 kg (23.81 lbs) | |
| Units per Carton | 50 | |
| Carton Dimension | 33×31.7×39.5 cm |
